Labino GX Orion UV LED
Labino GX Orion OverHead UV LED Bench Light.
Modular overhead UV System that allows you to design the desired covered area by mounting together multiple units using
the latest in UV LED Technology.
Labino GX Orion
Labino’s LED overhead inspection lamp, GX Orion, is a modular system that can be used to cover large areas. There are three different models
to choose from, remote controlled with multiple UV intensities, UV on/off button only, and UV and Visible (white) light on/off buttons only.
The GX Series family of products has been specifically designed to meet the ASTM E3022-18 and ISO 3059-12 standards as well requirements
set by the PRIMES. The optics used in the GX Series meet the Roll-Royce RRES 90061 specification. The beam profile of the UV light is extremely
homogeneous without any footprints showing from the LEDs, shades, dark spots or other disturbing defects.
All GX Orion models have a built-in PLC interface designed to connect to your PLC system. You can choose a “mother” or a “slave” GX Orion
unit, with or without remote panel, with or without on/off power switches and still be able to monitor the unit completely through your
computer via the PLC interface.

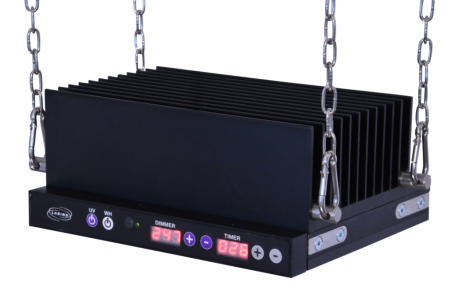

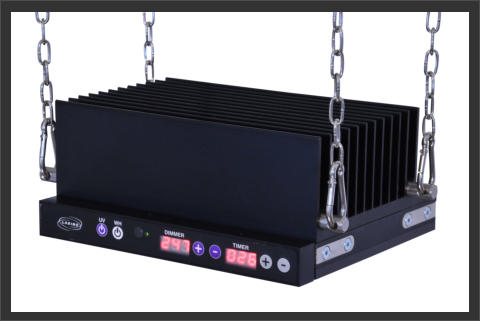

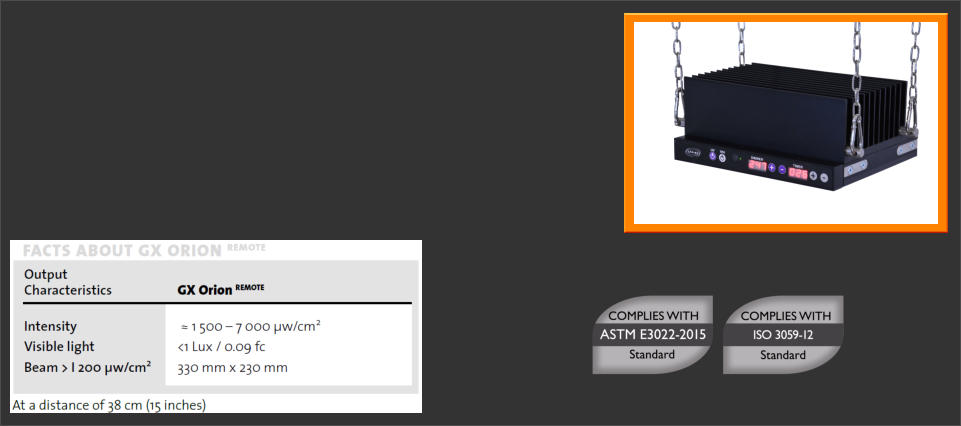

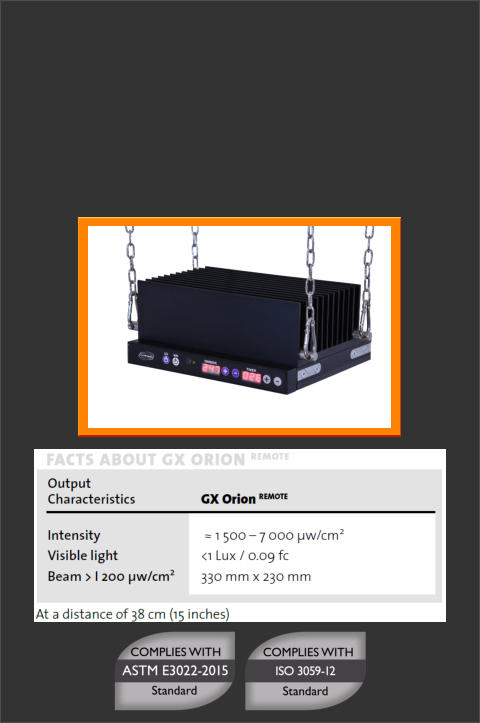

GX Orion - REMOTE
Part No: L3100 (mother)
Labino GX Orion REMOTE has been tested to comply with both ASTM E3022-18 and ISO
3059-12 standards. It generates an intensity that can adjusted to vary from
approximately 1,500 to 7,000 µw/cm² at 38cm (15 inches). It has a powerful white light
that can generate 1,000 lux (93fc) at 30 cm (12 inches).
A remote control allows you to switch on/off the UV and White light, change the intensity
and set up the timer from up to 5 meters (16 feet) away.

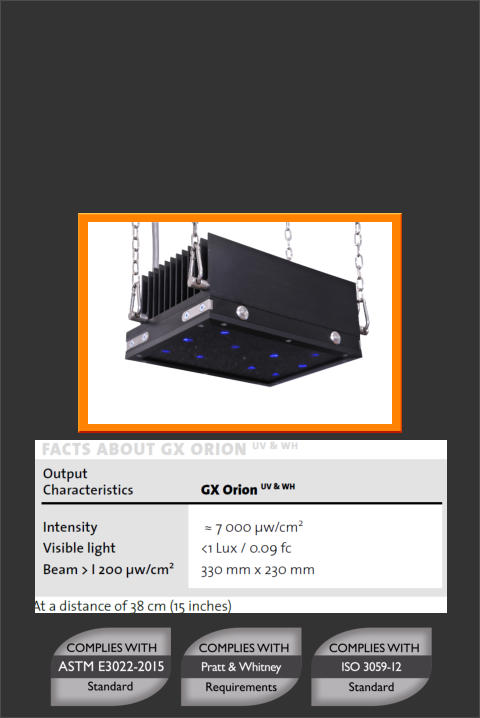

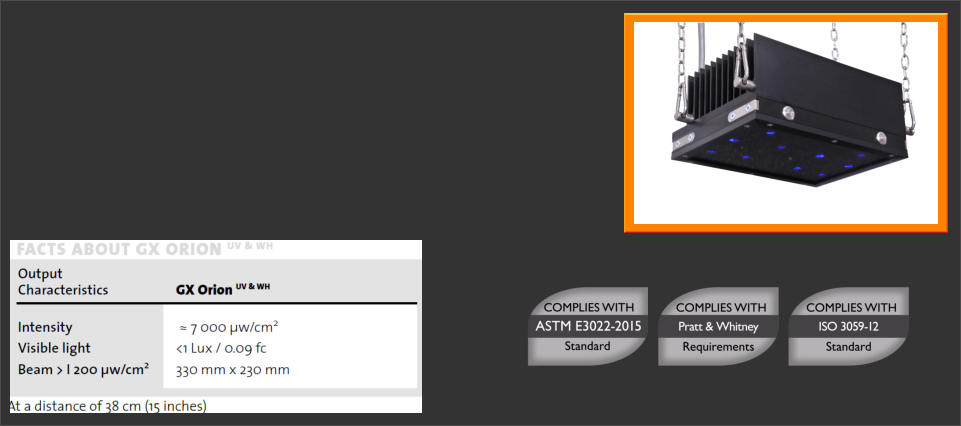

GX Orion - UV & WH
Part No: L3101 (mother) & L3104 (slave)
Labino GX Orion UV & WH has been tested to comply with both ASTM E3022-18 and ISO
3059-12 standards. It generates an intensity of approximately 7,000 µw/cm² at 38cm (15
inches). It has a powerful white light that can generate 1,000 lux (93fc).
This model does not have a remote, it comes with one UV and one White light ON/OFF
button.

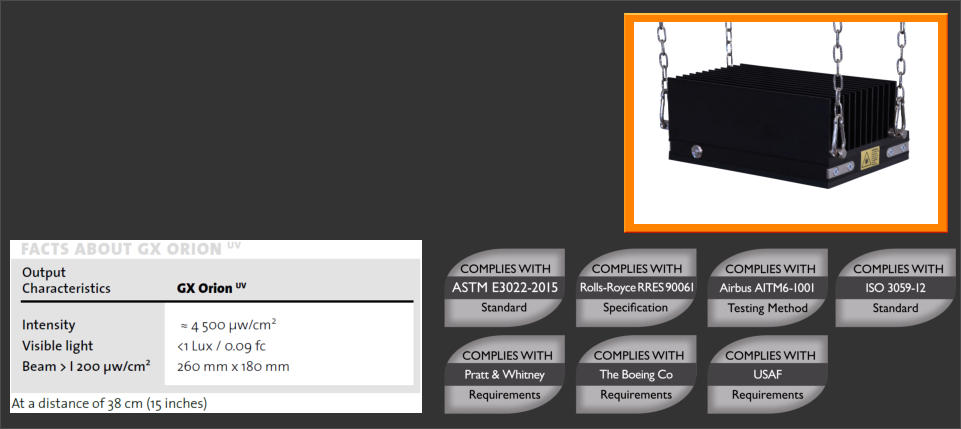

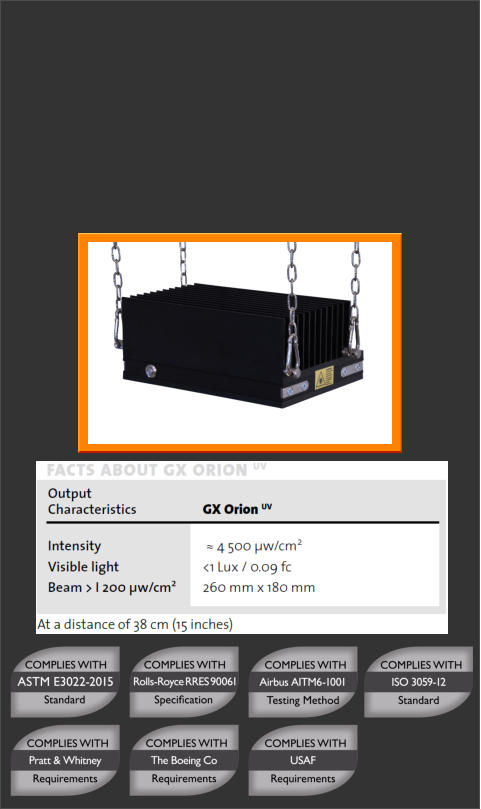

GX Orion - UV
Part No: L3102 (mother) & L3105 (slave)
Labino GX Orion UV has been tested to comply with both ASTM E3022-18 and ISO 3059-

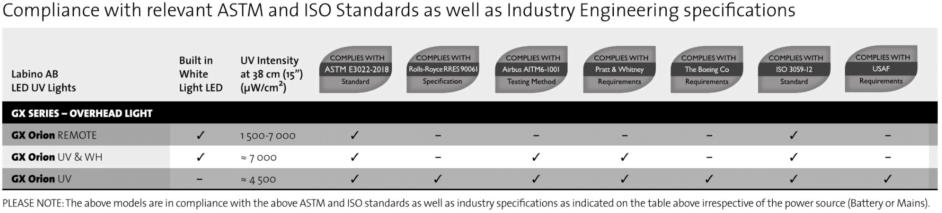

12 standards as well as with the internal requirements of all PRIMES seen in the table
below, including Rolls-Royce RRES 90061 and Airbus AITM6-1001. It generates an intensity
of approximately 4,500 µw/cm² at 38cm (15 inches).
This model does not have a white light or remote, it comes with one UV ON/OFF Button.
Multiple Labino GX Orion “slave” units can be mounted on a “mother” unit on either the long side or short side. This modular overhead UV
System allows you to design the desired covered area by mounting together multiple units.

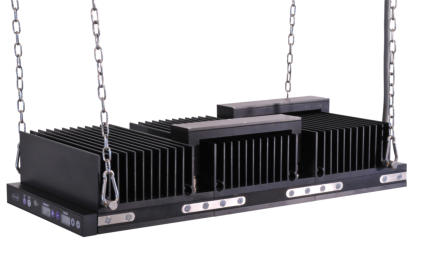

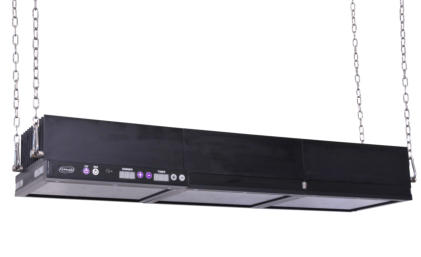

Three GX Orions Mounted together on the short side
Three GX Orions Mounted together on the long side

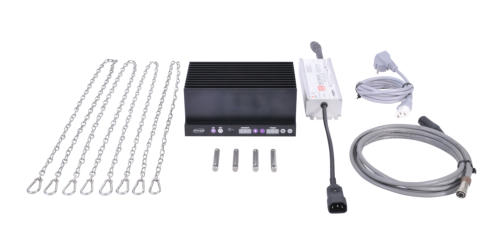

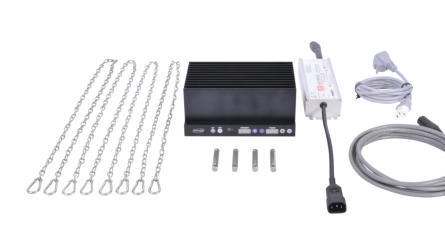

GX Orion “Mother” Package Includes:
GX Orion lamp of your choice, 4 stainless steel bars for
mounting, 4 chains with snap links, Power Supply Unit, Cable
between PSU

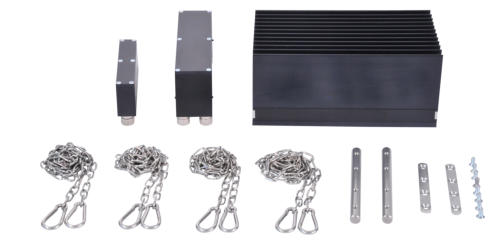

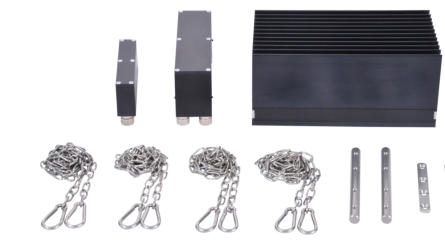

GX Orion “Slave” Package Includes:
GX Orion lamp with UV & WH or only UV LEDs, 2 stainless
steel bars and 1 cable connection for assembly short side to
short side, 2 stainless steel brackets and 1 cable connection
for assembly long side to long side, 4 chains with snap links.
UV Protection
Part No: S505 & S400
The Labino UV Blocking Glasses (S505) and Full Faceshield (S400).
These clear lens spectacles and faceshields offer 99.9% protection against ultraviolet radiation, provide
optimum viewing contrast and help reduce fatigue. They are lightweight and fit comfortably.
Foot Pedal for GX Series
Part No: A605 or A603
Labino Foot Pedal for GX Series (A605 or A603) can be used to power on the GX Orion lamps as an
alternative to using the Control Panel, Remote Control or on/off buttons. The benefit of using this power foot
pedal is that it is easier to operate if you work using large gloves or if you don’t have both your hands free. It
is also beneficial in cases when the lamp is installed in a position where it is not accessible.
Power Button for GX Series
Part No: A606 or A604
Labino Power Button for GX Series (A606 or A604) can be used to power on the GX Orion lamps as an
alternative to using the Control Panel, Remote Control or on/off buttons. The benefit of using this power
fbutton is that it is easier to operate if you work using large gloves or if you don’t have both your hands free.
It is also beneficial in cases when the lamp is installed in a position where it is not accessible.
Products & specifications subject to change without notice. E. & O.E.
Advanced NDT Limited
Unit 4, Elgar Business Centre
Moseley Road
Hallow, Worcester
WR2 6NJ, UK
TEL: 44 (0) 1905 371 460
EMAIL: sales@advanced-ndt.co.uk
Labino GX Orion OverHead UV LED Bench Light.
Modular overhead UV System that allows you to design the desired
covered area by mounting together multiple units using the latest in UV
LED Technology.
Labino GX Orion
Labino’s LED overhead inspection lamp, GX Orion, is a modular system
that can be used to cover large areas. There are three different models
to choose from, remote controlled with multiple UV intensities, UV
on/off button only, and UV and Visible (white) light on/off buttons only.
The GX Series family of products has been specifically designed to meet
the ASTM E3022-18 and ISO 3059-12 standards as well requirements
set by the PRIMES. The optics used in the GX Series meet the Roll-Royce
RRES 90061 specification. The beam profile of the UV light is extremely
homogeneous without any footprints showing from the LEDs, shades,
dark spots or other disturbing defects.
All GX Orion models have a built-in PLC interface designed to connect
to your PLC system. You can choose a “mother” or a “slave” GX Orion
unit, with or without remote panel, with or without on/off power
switches and still be able to monitor the unit completely through your
computer via the PLC interface.
GX Orion - REMOTE
Part No: L3100 (mother)
Labino GX Orion REMOTE has been tested to comply with both ASTM E3022-
18 and ISO 3059-12 standards. It generates an intensity that can adjusted to
vary from approximately 1,500 to 7,000 µw/cm² at 38cm (15 inches). It has a
powerful white light that can generate 1,000 lux (93fc) at 30 cm (12 inches).
A remote control allows you to switch on/off the UV and White light, change
the intensity and set up the timer from up to 5 meters (16 feet) away.
GX Orion - UV & WH
Part No: L3101 (mother) & L3104 (slave)
Labino GX Orion UV & WH has been tested to comply with both ASTM
E3022-18 and ISO 3059-12 standards. It generates an intensity of
approximately 7,000 µw/cm² at 38cm (15 inches). It has a powerful white
light that can generate 1,000 lux (93fc).
This model does not have a remote, it comes with one UV and one White
light ON/OFF button.
GX Orion - UV
Part No: L3102 (mother) & L3105 (slave)
Labino GX Orion UV has been tested to comply with both ASTM E3022-18
and ISO 3059-12 standards as well as with the internal requirements of all
PRIMES seen in the table below, including Rolls-Royce RRES 90061 and
Airbus AITM6-1001. It generates an intensity of approximately 4,500 µw/cm²
at 38cm (15 inches).
This model does not have a white light or remote, it comes with one UV
ON/OFF Button.
Multiple Labino GX Orion “slave” units can be mounted on a “mother”
unit on either the long side or short side. This modular overhead UV
System allows you to design the desired covered area by mounting
together multiple units.
Three GX Orions Mounted together on the short side
Three GX Orions Mounted together on the long side
GX Orion “Mother” Package Includes:
GX Orion lamp of your choice, 4 stainless steel bars for
mounting, 4 chains with snap links, Power Supply Unit, Cable
between PSU
GX Orion “Slave” Package Includes:
GX Orion lamp with UV & WH or only UV LEDs, 2 stainless
steel bars and 1 cable connection for assembly short side to
short side, 2 stainless steel brackets and 1 cable connection
for assembly long side to long side, 4 chains with snap links.
Labino GX Orion
Accessories
UV Protection
Part No: S505 & S400
The Labino UV Blocking Glasses (S505) and Full Faceshield (S400).
These clear lens spectacles and faceshields offer 99.9% protection against
ultraviolet radiation, provide optimum viewing contrast and help reduce
fatigue. They are lightweight and fit comfortably.
Foot Pedal for GX Series
Part No: A605 or A603
Labino Foot Pedal for GX Series (A605 or A603) can be used to power on
the GX Orion lamps as an alternative to using the Control Panel, Remote
Control or on/off buttons. The benefit of using this power foot pedal is that it
is easier to operate if you work using large gloves or if you don’t have both
your hands free. It is also beneficial in cases when the lamp is installed in a
position where it is not accessible.
Power Button for GX Series
Part No: A606 or A604
Labino Power Button for GX Series (A606 or A604) can be used to power
on the GX Orion lamps as an alternative to using the Control Panel, Remote
Control or on/off buttons. The benefit of using this power button is that it is
easier to operate if you work using large gloves or if you don’t have both
your hands free. It is also beneficial in cases when the lamp is installed in a
position where it is not accessible.
