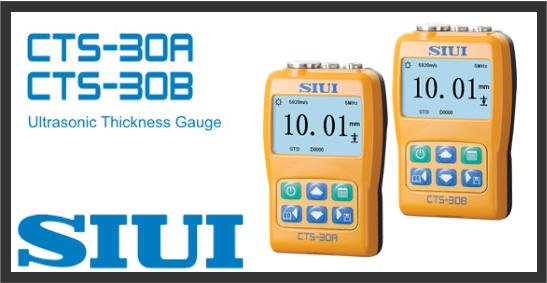

The SIUI CTS-30A & CTS-30B is a small, lightweight Ultrasonic Thickness Gauge which offers exceptional value for money. Ideal for basic testing applications.

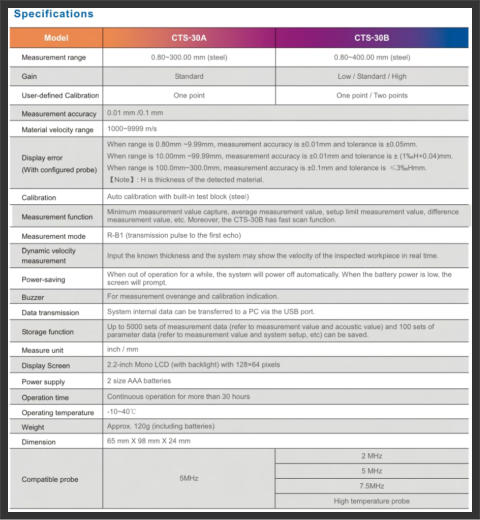

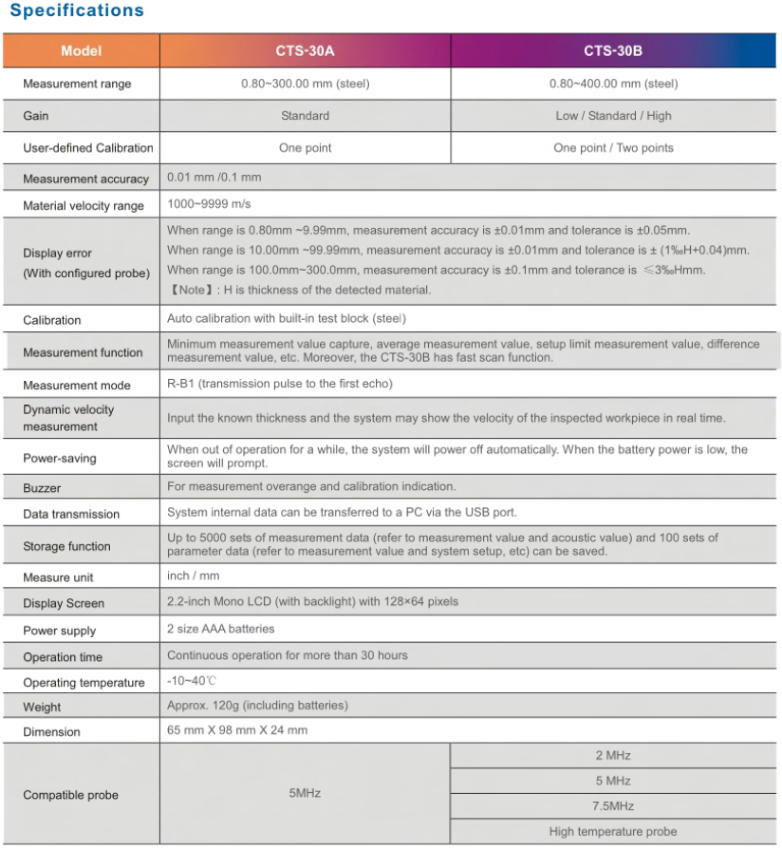

The SIUI CTS-30A / CTS-30B Ultrasonic Thickness Gauge, adopts micro- processor technology and advanced manufacture process design, can do measurement of thickness and acoustic velocity on metal and many materials based on ultrasound measurement principle. • Mono LCD (with Back light), 128 x 64 pixels • Measurement Range: 0.8mm-300mm/400mm (steel) • Measurement Accuracy: 0.01mm/0.1mm • Various Measurement Modes available: Minimum measurement value capture, average measurement value, set-up limit measurement vale, difference measurement value, etc. • Input the known thickness and the system may show the velocity of the inspected work-piece in real time. • Up to 5000 sets of measurement data (refer to measurement value and acoustic value) and 100 sets of parameter data (refer to measurement value and system set-up, etc.) can be saved. • Compact size, lightweight, low consumption and long operation period. Compared with the CTS-30A Thickness meter, the CTS-30B model has more advanced functions, such as: • Fast Scan • Two-Point Calibration • Multi-Probe Selection
