Labino BB 2.0 Series UV LED

The Labino BB 2.0 Series - UV LED Light - BB 2.0 Helios, BB 2.0 Ikaros & BB 2.0 Artemis Powerful UV LED Lights that produces a large beam, useful for covering large areas, widely used either in the field, on an MPI Bench or a penetrant line. Penetrant Resistant and IP68 Waterproof.

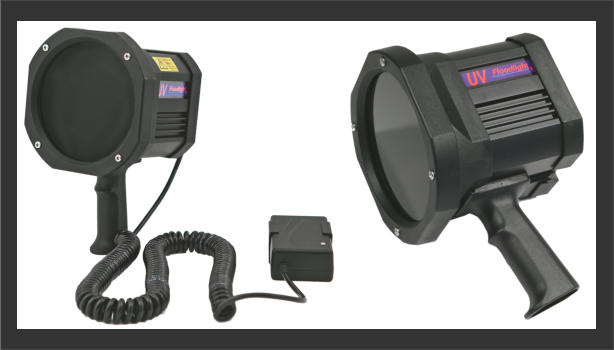

Labino BB 2.0 Series Mains and Battery Versions

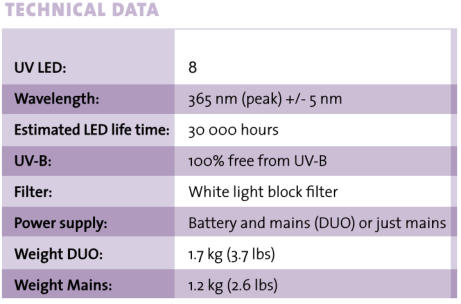

BB 2.0 Series products Helios, Ikaros & Artemis BB 2.0 Series products Helios, Ikaros & Artemis are lights with a powerful and wide UV Output. They provide large coverage and weigh less than many comparable products. The mains operated model weighs just 1.2 kg (2.6 lbs) and the battery operated model weighs just 1.7 kg (3.7 lbs). They are widely used for field inspections or on an MPI bench. BB 2.0 Series lamps are penetrant resistant and have ingress protection 68 (IP68 Waterproof). The BB 2.0 Series family of products has been specifically designed to meet the ASTM E3022-18 and ISO 3059-12 standards as well requirements set by the PRIMES. The optics used in the BB 2.0 Series meet the Rolls-Royce RRES 90061 specification. The beam profile of the UV light is extremely homogeneous without any footprints showing from the LED’s, shades, dark spots or other disturbing defects. NDT professionals worldwide recognize BB 2.0 series qualities, making it Labino’s best-selling product for many years in a row. This lamp is based on LED technology and offers you a very narrow spectra with a peak wavelength of 365nm. Each unit consists of 8 ultraviolet LEDs. Each LED’s life is estimated at 30,000 hours. All electronics as well as the LEDs are placed in a single rugged housing with the diameter not exceeding 15.5cm (6.1 inches).

Labino BB 2.0 - IKAROS Part No: L1074 (Mains) & L1075 (Duo)

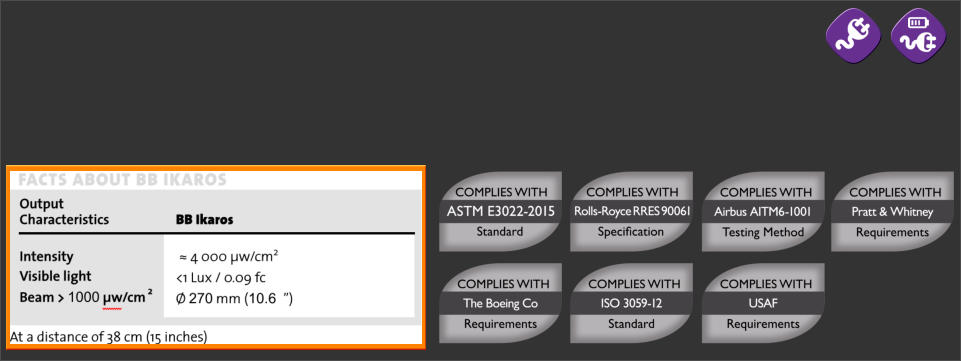

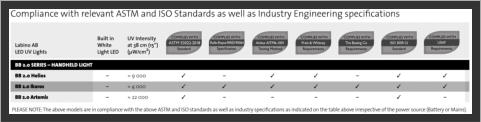

BB 2.0 Ikaros has been tested to comply with both ASTM E3022-18 and ISO 3059-12 standards as well as with the internal requirements of all PRIMES seen in the table below, including Rolls-Royce RRES 90061 and Airbus AITM6-1001. It generates an intensity of approximately 4,000 µw/cm² (40W/m²) at 38cm (15 inches) The running time of the battery version is 7 hours (constant use)

Labino BB 2.0 - HELIOS Part No: L1076 (Mains) & L1077 (Duo)

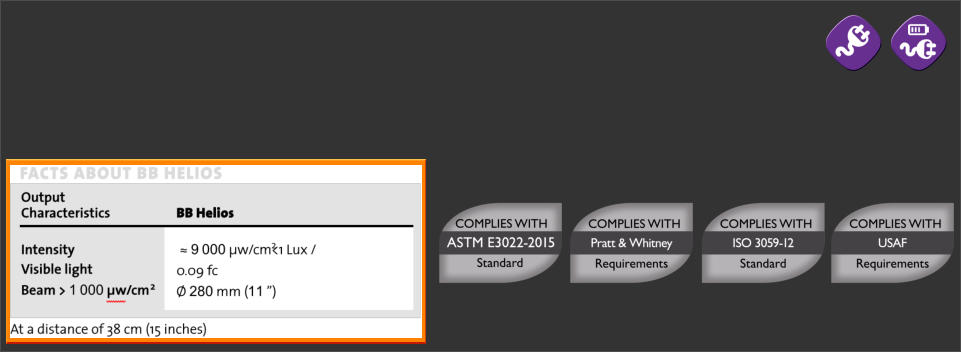

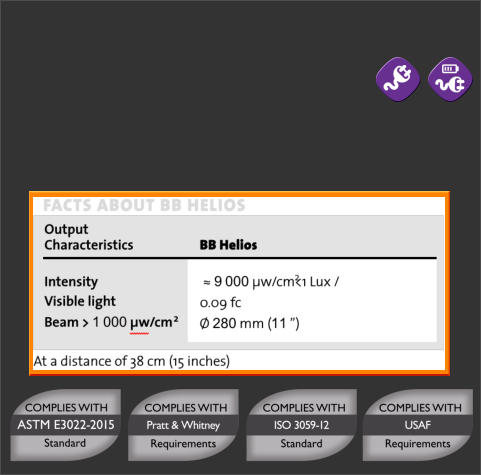

BB 2.0 Helios has been tested to comply with both ASTM E3022-18 and ISO 3059-12 standards. It generates an intensity of approximately 9,000 µw/cm² (90W/m²) at 38cm (15 inches). The running time of the battery is 6 hours (constant use).

In all BB 2.0 models the start function provides full power instantly. This product is IP68 waterproof approved. The BB 2.0 series are 100% free from UV-B and each unit is equipped with a white light block filter which helps the lamp emit almost no visible light. Each unit is provided with a certificate of compliance depending on your choice of model. Your Choice • Version: BB HELIOS, BB IKAROS or BB Artemis • Power Source: All BB 2.0models are available as Battery and Mains (DUO) or just Mains. The DUO is battery operated, but it is possible to run the unit via mains while charging the battery. The battery has a running time of 5 hours (Artemis), 6 hours (Helios) & 7 hours (Ikaros) (+/- 5%). Each DUO unit is equipped with a current regulator to keep the intensity steady when the battery fades. The mains model is equipped with a 2 meter long extendable cord although it is possible to order a longer customized version of your choice or alternatively buy a BB on a Cable Winder for convenience. Total weight of the DUO model is 1.7 kilos (3.7 lbs) and of the Mains model 1.2 kilos (2.6 lbs). Both models (DUO and MAINS) come with a pistol handle as standard. Mounting brackets for fixed installations are optional. • Accessories: Add a carrying case, a cable winder or a friction arm for your convenience. A UV Block visor is recommended for your protection.

Labino BB - Cable Winder Part No: F175 Keep your workspace in order without loose cables The New generation of Cable Winder with 9.5m (31 feet) cable is now available. The Labino BB Cable Winder is a BB UV LED lamp connected to a Cable Winder. This allows you to mount the BB on a wall and use as much cable as required for each inspection. The Labino BB Cable Winder is equipped with a high quality rubber cable of 9.5 m (31 feet). Operated via Mains power supply connected to a cable winder drum with ball bearings on both sides and a snap on wall bracket for easy mounting. With a Unique safety latch that keeps the wire stable and allows the user to carry out the inspection without resistance. The BB Cable Winder will replace the Original Labino MPXL Cable Winder. The BB Cable Winder is available in the same great versions as the BB Mains (see above), BB 2.0 HELIOS, BB 2.0 IKAROS or BB 2.0 ARTEMIS

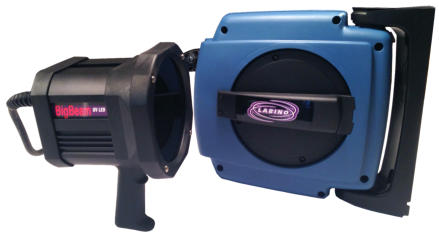

Labino BB with Cable Winder Accessory attached.

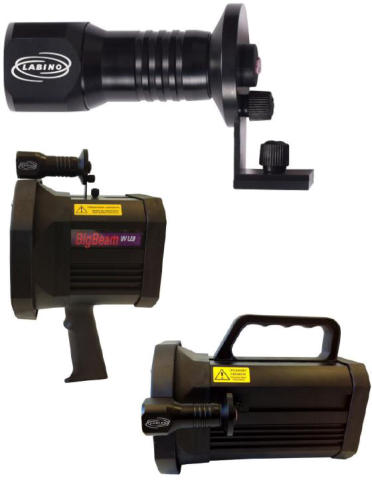

EnLiten - White LED After Inspection Light (add on optional accessory) Labino’s mission is to improve the working environment of the operative NDT engineer and create precise instruments that helps identify the defects. Labino now offers the first white light LED for after inspection especially designed for Standard Labino MPXL lights and all versions of the Labino BB range. The Labino EnLiten (L2001) is a small-sized, Lightweight white light LED lamp designed to be mounted on a Labino MPXL lamp or Labino BB. The Labino EnLiten is designed to be used as an after inspection light (to search for indications) performing NDT. The EnLiten lamp is easy to mount on your existing Labino BB or Standard MPXL light as it easily slides into one of the tracks on the side or on the top of the Lamp. The small white light accessory lamp is easily mounted on the MPXL or BB in a few minutes. The Labino EnLiten contains one(1) light emitting diode (LED). The LED creates more than 300 Lux (27.9 foot Candle) at a distance of 38cm (15 inches).Full power is reached instantly. The on/off button is positioned in the back of the lamp for easy activation. At full charge the battery provides up to 1.5 hours of use. Recharge from a normal outlet with the included chargers.(approx. 2hours). Weight including battery 121 grams.

Labino EnLiten White LED After Inspection Light

Friction Arm Part No: A530

Labino Friction Arm (A530) is a high quality, flexible and easy-to-use support system. The system is suitable for many different applications, enabling the operator to work with two free hands. Jointed arm with just one large locking knob. Either free stand on the 3 leg base or clamp to bench etc. via the second clamp. Length: 53 cm (21”). Weight: 1.07 kg (2.35 lb) are only, 2.55 kg (5.61 lb) complete.

Labino En-Liten Part No: L2001

The Labino EnLiten (L2001) is a small-sized, Lightweight white light LED lamp designed to be mounted on a Labino MPXL lamp or Labino BB. The Labino EnLiten is designed to be used as an after inspection light (to search for indications) performing NDT.

Labino EnLiten Mounted After Inspection Light

UV Protection Part No: S505 & S400

The Labino UV Blocking Glasses (S505) and Full Faceshield (S400). These clear lens spectacles and faceshields offer 99.9% protection against ultraviolet radiation, provide optimum viewing contrast and help reduce fatigue. They are lightweight and fit comfortably.

Labino Eye Protection UV Blocking Glasses

Labino BB 2.0 - ARTEMIS Part No: L1078 (Mains) & L1079 (Duo)

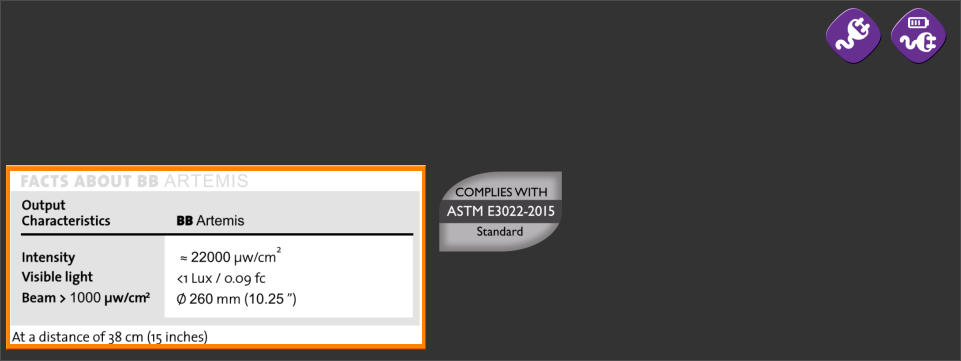

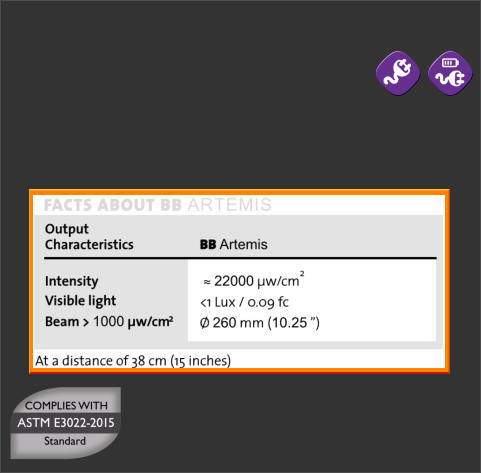

BB 2.0 Artemis has been tested to comply with both ASTM E3022-18 and ISO 3059-12 standards. It generates an intensity of approximately 22,000 µw/cm² (220W/m²) at 38cm (15 inches). The running time of the battery is 5 hours (constant use).

Products & specifications subject to change without notice. E. & O.E.

Advanced NDT Limited Unit 4, Elgar Business Centre Moseley Road Hallow, Worcester WR2 6NJ, UK TEL: 44 (0) 1905 371 460

EMAIL: sales@advanced-ndt.co.uk

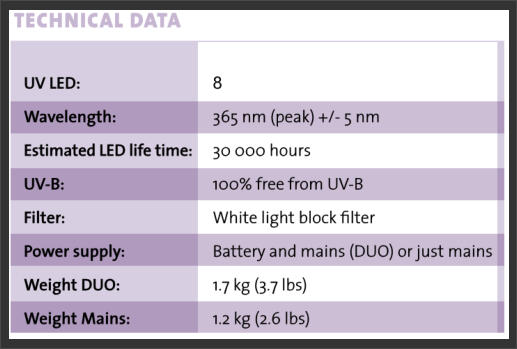

BB 2.0 Series products Helios, Ikaros & Artemis BB 2.0 Series products Helios, Ikaros & Artemis are lights with a powerful and wide UV Output. They provide large coverage and weigh less than many comparable products. The mains operated model weighs just 1.2 kg (2.6 lbs) and the battery operated model weighs just 1.7 kg (3.7 lbs). They are widely used for field inspections or on an MPI bench. BB 2.0 Series lamps are penetrant resistant and have ingress protection 68 (IP68 Waterproof). The BB 2.0 Series family of products has been specifically designed to meet the ASTM E3022-18 and ISO 3059-12 standards as well requirements set by the PRIMES. The optics used in the BB 2.0 Series meet the Rolls-Royce RRES 90061 specification. The beam profile of the UV light is extremely homogeneous without any footprints showing from the LED’s, shades, dark spots or other disturbing defects. NDT professionals worldwide recognize BB series qualities, making it Labino’s best-selling product for many years in a row. This lamp is based on LED technology and offers you a very narrow spectra with a peak wavelength of 365nm. Each unit consists of 8 ultraviolet LEDs. Each LED’s life is estimated at 30,000 hours. All electronics as well as the LEDs are placed in a single rugged housing with the diameter not exceeding 15.5cm (6.1 inches).

Labino BB 2.0 - IKAROS Part No: L1074 (Mains) & L1075 (Duo)

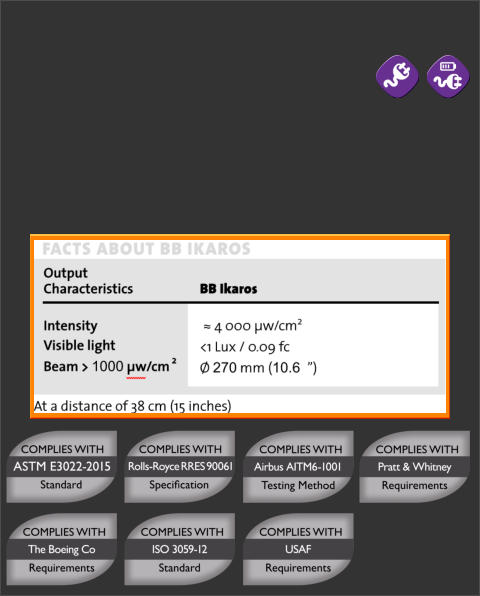

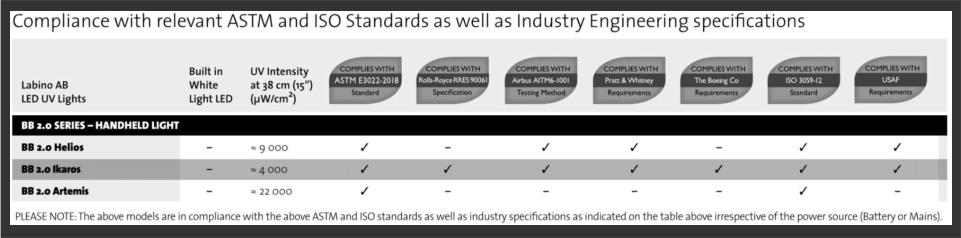

BB 2.0 Ikaros has been tested to comply with both ASTM E3022-18 and ISO 3059-12 standards as well as with the internal requirements of all PRIMES seen in the table below, including Rolls-Royce RRES 90061 and Airbus AITM6-1001. It generates an intensity of approximately 4,000 µw/cm² (40W/m²) at 38cm (15 inches) and it does not have a white light LED. The running time of the battery version is 7 hours (constant use)

Labino BB 2.0 - HELIOS Part No: L1076 (Mains) & L1077 (Duo)

Labino BB - Cable Winder Keep your workspace in order without loose cables The New generation of Cable Winder with 9.5m (31 feet) cable is now available. The Labino BB Cable Winder is a BB UV LED lamp connected to a Cable Winder. This allows you to mount the BB on a wall and use as much cable as required for each inspection. The Labino BB Cable Winder is equipped with a high quality rubber cable of 9.5 m (31 feet). Operated via Mains power supply connected to a cable winder drum with ball bearings on both sides and a snap on wall bracket for easy mounting. With a Unique safety latch that keeps the wire stable and allows the user to carry out the inspection without resistance. The BB Cable Winder will replace the Original Labino MPXL Cable Winder. The BB Cable Winder is available in the same great versions as the BB Mains (see above), BB HELIOS or BB IKAROS

EnLiten White LED After Inspection Light (add on optional accessory) Labino’s mission is to improve the working environment of the operative NDT engineer and create precise instruments that helps identify the defects. Labino now offers the first white light LED for after inspection especially designed for Standard Labino MPXL lights and all versions of the Labino BB range. The Labino EnLiten (L2001) is a small-sized, Lightweight white light LED lamp designed to be mounted on a Labino MPXL lamp or Labino BB. The Labino EnLiten is designed to be used as an after inspection light (to search for indications) performing NDT. The EnLiten lamp is easy to mount on your existing Labino BB or Standard MPXL light as it easily slides into one of the tracks on the side or on the top of the Lamp. The small white light accessory lamp is easily mounted on the MPXL or BB in a few minutes. The Labino EnLiten contains one(1) light emitting diode (LED). The LED creates more than 300 Lux (27.9 foot Candle) at a distance of 38cm (15 inches).Full power is reached instantly. The on/off button is positioned in the back of the lamp for easy activation. At full charge the battery provides up to 1.5 hours of use. Recharge from a normal outlet with the included chargers. (approx. 2hours). Weight including battery 121 grams.

Labino BB 2.0 Series

Friction Arm Part No: A530

Labino En-Liten Part No: L2001

UV Protection Part No: S505 & S400

Labino BB 2.0 - ARTEMIS Part No: L1078 (Mains) & L1079 (Duo)

BB Artemis has been tested to comply with both ASTM E3022-18 and ISO 3059-12 standards. It generates an intensity of approximately 22,000 µw/cm² (220W/m²) at 38cm (15 inches). The running time of the battery is 5 hours (constant use).
