PosiPen
The PosiPen has a very small, unique magnet which can be placed with pin-point accuracy on extremely small parts, and on peaks
and valleys. Ideal for measuring non-magnetic coatings such as paint, enamel, plating, hot-dip galvanizing on steel.

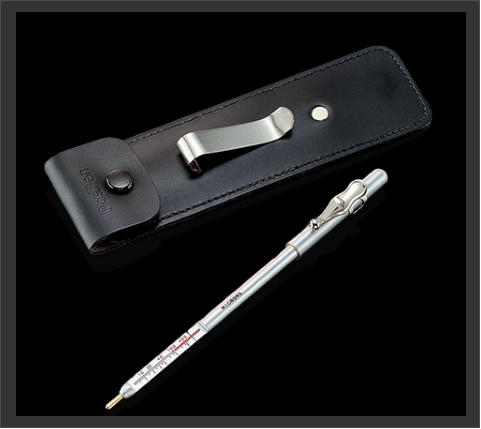

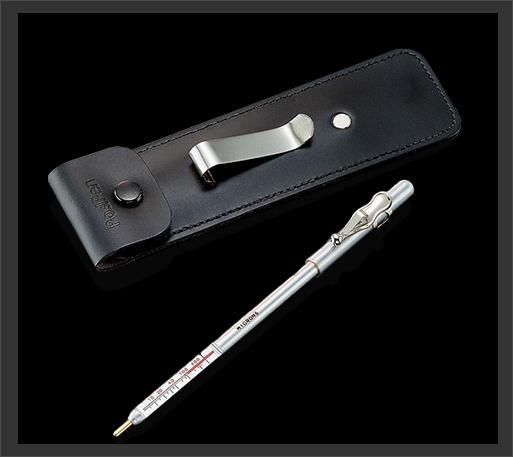

PosiPen - Coating Thickness Gauge
• Can be used on small, hot or hard-to-reach surfaces
• Easy-to-Use
• Lightweight – easy to carry, just like a ball point pen
• Rugged – not affected by mechanical shock, acid, oil, water and dust
• No user adjustment required
• Highly wear resistant probe tip for long life and continuous accuracy
Operating The PosiPen
Make sure the surface to be measured is clean and free from oil and grease. Hold the PosiPen at a right angle to the surface to be measured.
Place the tip of the gauge on the coated surface and allow the magnet to contact.
Pull it straight back from the object while keeping close watch on the appropriate indicator. Note the reading when the magnet releases.
Repeat if necessary.
PosiPen Measures
• Small, hot or hard-to-reach surfaces
• Spot Checks – conveniently fits in a shirt pocket
• Hot Sprayed Coatings
Simple
• Easy-to-Use
• Lightweight – easy to carry, just like a ballpoint pen
Accurate
• No user adjustment required
• Certificate of Calibration traceable to PTB included
• Highly wear resistant probe tip for long life and continuous accuracy

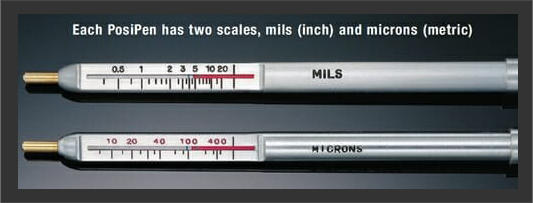

• Each PosiPen has two scales, mils (inch) and microns (metric)
• Conforms to National and International Standards including ASTM D7091/B499, ISO 2808 and others
Durable
• No batteries / electronics
• Rugged – not affected by mechanical shock, acid, oil, water and dust
Ideal For
• Refineries, petrochemical plants
• Platers – electroplating, chrome, zinc, galvanizing
• Powder coaters
Products & specifications subject to change without notice. E. & O.E.
Advanced NDT Limited
Unit 4, Elgar Business Centre
Moseley Road
Hallow, Worcester
WR2 6NJ, UK
TEL: 44 (0) 1905 371 460
EMAIL: sales@advanced-ndt.co.uk
The PosiPen has a very small, unique magnet which can be placed with
pin-point accuracy on extremely small parts, and on peaks and valleys.
Ideal for measuring non-magnetic coatings such as paint, enamel,
plating, hot-dip galvanizing on steel.
PosiPen - Coating Thickness Gauge
• Can be used on small, hot or hard-to-reach surfaces
• Easy-to-Use
• Lightweight – easy to carry, just like a ball point pen
• Rugged – not affected by mechanical shock, acid, oil, water and dust
• No user adjustment required
• Highly wear resistant probe tip for long life and continuous accuracy
Operating The PosiPen
Make sure the surface to be measured is clean and free from oil and
grease. Hold the PosiPen at a right angle to the surface to be
measured. Place the tip of the gauge on the coated surface and allow
the magnet to contact.
Pull it straight back from the object while keeping close watch on the
appropriate indicator. Note the reading when the magnet releases.
Repeat if necessary.
PosiPen Measures
• Small, hot or hard-to-reach surfaces
• Spot Checks – conveniently fits in a shirt pocket
• Hot Sprayed Coatings
Simple
• Easy-to-Use
• Lightweight – easy to carry, just like a ballpoint pen
Accurate
• No user adjustment required
• Certificate of Calibration traceable to PTB included
• Highly wear resistant probe tip for long life and continuous accuracy
• Each PosiPen has two scales, mils (inch) and microns (metric)
• Conforms to National and International Standards including ASTM
D7091/B499, ISO 2808 and others
Durable
• No batteries / electronics
• Rugged – not affected by mechanical shock, acid, oil, water and dust
Ideal For
• Refineries, petrochemical plants
• Platers – electroplating, chrome, zinc, galvanizing
• Powder coaters
