Special Ultrasonic Gauges
Ultrasonic Thickness Gauges Page Button
A Special selection of Ultrasonic Thickness Gauges designed specifically for tough environments such as Underwater or in explosive environments. CorDEX  UT5000 - Ultrasonic Thickness Gauge – ATEX & IECEx Certified Dakota UMX-2 - Underwater material and coating thickness gauge, designed for offshore inspections, and rated to a depth of 1000 feet (300 meters).
Dakota Ultrasonics UMX-2 Underwater material and coating thickness gauge Brochure Button Request Quote Button Request Quote Button Cordex UT5000 Intrinsically safe Ultrasonic Thickness Gauge Brochure Button

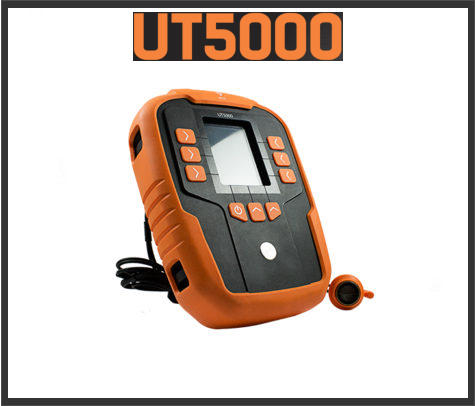

CorDEX - UT5000 UT5000 Intrinsically Safe thickness gauge with CorDEX CONNECT™ measures metal thickness for Non-Destructive Testing (NDT) and Predictive Maintenance (Pdm) on pipelines and fixed equipment within hazardous locations. UT5000 is a next generation thickness gauge packed with proven technologies: CorDEX CONNECT™ uses RFID + Software to tag measurements with their location then organises the data, giving the engineer a view of the pipeline at any specific location. The unique corrosion mode option helps identify spots of thinning; MultiECHO™ technology improves accuracy on uneven surfaces; onboard memory stores up to 1000 readings. The CorDEX UT5000 is ATEX and IECEx certified for Gas & Dust (Zone 21). From storage tanks to dust conveyors, UT5000 can measure thickness and detect safely problems in virtually any explosive environment. The Ruggedized transducer and Brass wear ring prevent undue wear on the transducer surface and ensure the UT5000 is tougher than most. Designed for rugged environments, the shock resistant skin protects a 3.1 inch (8cm) colour screen and has easy-to-feel raised buttons. The intrinsically safe dual-element, 4MHz transducer is adjustable up to 8Hz with accuracy of +/- 0.05mm (0.002inch). Features ATEX and IECEx Certified for Zone 1 IIC T4 hazardous areas Features CorDEX CONNECT™ Intrinsically safe probe supplied as standard full Colour, backlit screen EchoEcho Technology to measure thickness through painted surfaces Drop-down menus to select the correct material velocity Multiple calibration and zeroing modes for repeatable accuracy On-board data recorder and RFID scanner, store up to a thousand automatically linked to tag location Menu ‘flip’ function allows use by both left and right handed technicians

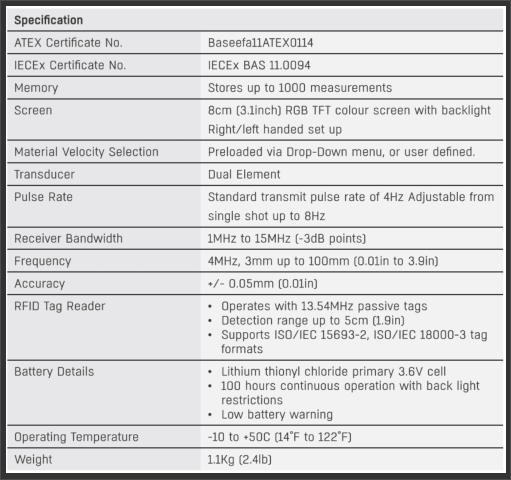

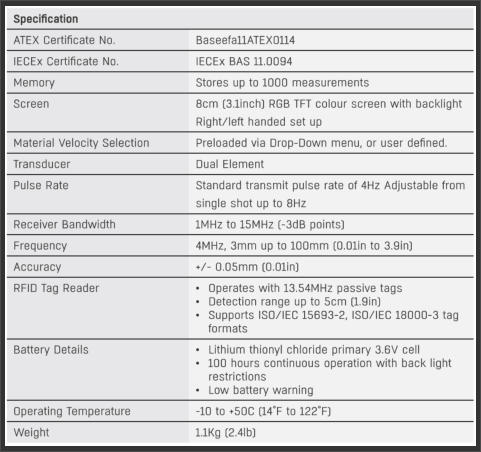

Cordex UT5000 Intrinsically safe Ultrasonic Thickness Gauge. Cordex UT5000 Intrinsically safe Ultrasonic Thickness Gauge Specifications Dakota Ultrasonics UMX-2 Underwater material and coating thickness gauge.

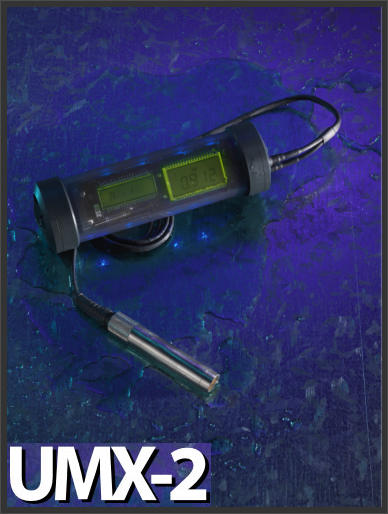

Dakota - UMX-2 UMX-2 underwater material and coating thickness gauge, designed for offshore inspections, and rated to a depth of 1000 feet (300 meters). The UMX-2 is very versatile, offering both Dual & Single element transducers. Equipped with multiple measurement mode options, the UMX-2 will meet all your application requirements. Onboard 5,000 point data logger, all UMX-2 settings stored for each measurement, along with an actual A-Scan waveform. Our DakView java-based PC or MAC OSX software makes this a very functional kit. Powered by a 100MHz DSP platform using FPGA technology. Two Channels – Dual pulsers and receivers. Up to 140Hz pulse repetition rate. Display update rate of 25 times per second. Adjustable gain settings – vlow, low, med, hi, vhi. Automatic gain control (AGC). Time corrected gain (TCG). Massive data storage (32 Megabit of non-volatile RAM). Features 1000 ft. (300m) depth rating. Captures an A-Scan waveform snapshot with every measurement; viewable using our Windows PC interface software. Measurement modes: Dual Element – Pulse-Echo, Pulse-Echo w/Coating, Echo-Echo. Single Element – Triple-Echo (TCG). Automatic: probe zero and probe recognition. Data storage formats: Alpha numeric grid and sequential w/auto identifier. Windows PC software included. 3 year limited warranty.

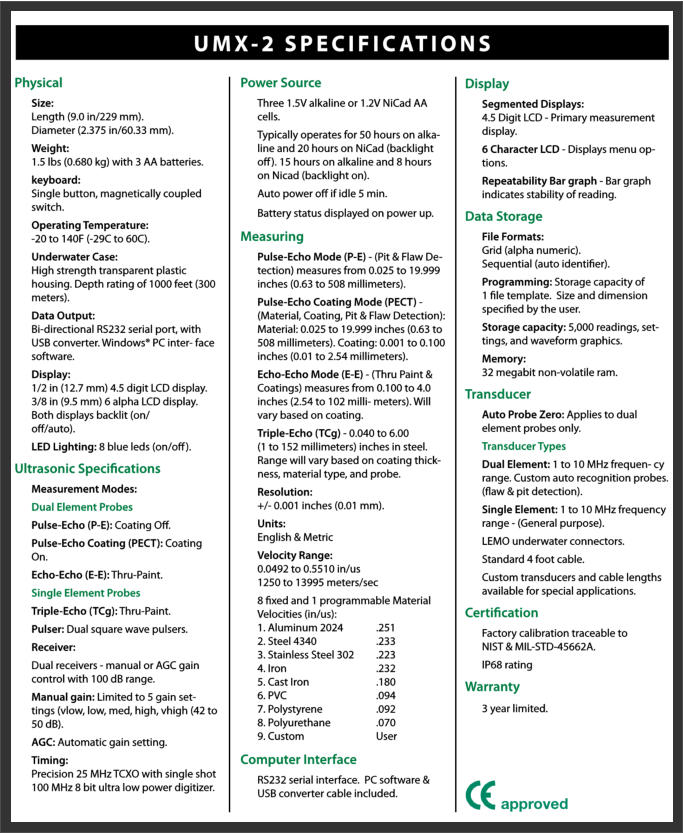

Request Quote Button Dakota Ultrasonics UMX-2 Underwater material and coating thickness gauge specifications Cordex UT5000 Intrinsically safe Ultrasonic Thickness Gauge Request Quote Button SHOP
Products & specifications subject to change without notice.                            E. & O.E.
Advanced NDT Limited Unit 4, Elgar Business Centre Moseley Road Hallow, Worcester WR2 6NJ, UK TEL: 44 (0) 1905 371 460
A Special selection of Ultrasonic Thickness Gauges designed specifically for tough environments such as Underwater or in explosive environments. CorDEX  UT5000 - Ultrasonic Thickness Gauge – ATEX & IECEx Certified Dakota UMX-2 - Underwater material and coating thickness gauge, designed for offshore inspections, and rated to a depth of 1000 feet (300 meters).
BROCHURES PRODUCTS
Special Ultrasonic Gauges
Brochure REQUEST QUOTE Brochure

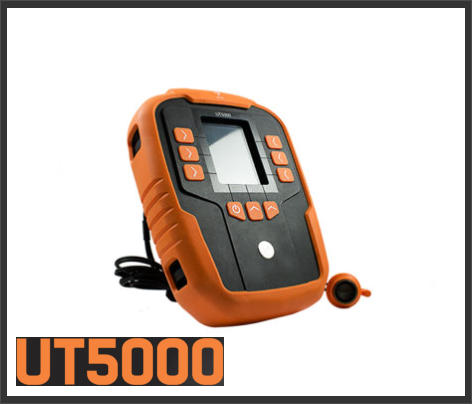

CorDEX - UT5000 UT5000 Intrinsically Safe thickness gauge with CorDEX CONNECT™ measures metal thickness for Non-Destructive Testing (NDT) and Predictive Maintenance (Pdm) on pipelines and fixed equipment within hazardous locations. UT5000 is a next generation thickness gauge packed with proven technologies: CorDEX CONNECT™ uses RFID + Software to tag measurements with their location then organises the data, giving the engineer a view of the pipeline at any specific location. The unique corrosion mode option helps identify spots of thinning; MultiECHO™ technology improves accuracy on uneven surfaces; onboard memory stores up to 1000 readings. The CorDEX UT5000 is ATEX and IECEx certified for Gas & Dust (Zone 21). From storage tanks to dust conveyors, UT5000 can measure thickness and detect safely problems in virtually any explosive environment. The Ruggedized transducer and Brass wear ring prevent undue wear on the transducer surface and ensure the UT5000 is tougher than most. Designed for rugged environments, the shock resistant skin protects a 3.1 inch (8cm) colour screen and has easy-to-feel raised buttons. The intrinsically safe dual-element, 4MHz transducer is adjustable up to 8Hz with accuracy of +/- 0.05mm (0.002inch). Features ATEX and IECEx Certified for Zone 1 IIC T4 hazardous areas Features CorDEX CONNECT™ Intrinsically safe probe supplied as standard full Colour, backlit screen EchoEcho Technology to measure thickness through painted surfaces Drop-down menus to select the correct material velocity Multiple calibration and zeroing modes for repeatable accuracy On-board data recorder and RFID scanner, store up to a thousand automatically linked to tag location Menu ‘flip’ function allows use by both left and right handed technicians

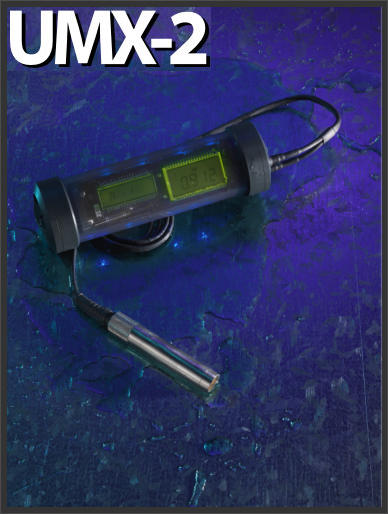

Dakota - UMX-2 UMX-2 underwater material and coating thickness gauge, designed for offshore inspections, and rated to a depth of 1000 feet (300 meters). The UMX-2 is very versatile, offering both Dual & Single element transducers. Equipped with multiple measurement mode options, the UMX-2 will meet all your application requirements. Onboard 5,000 point data logger, all UMX-2 settings stored for each measurement, along with an actual A-Scan waveform. Our DakView java-based PC or MAC OSX software makes this a very functional kit. Powered by a 100MHz DSP platform using FPGA technology. Two Channels – Dual pulsers and receivers. Up to 140Hz pulse repetition rate. Display update rate of 25 times per second. Adjustable gain settings – vlow, low, med, hi, vhi. Automatic gain control (AGC). Time corrected gain (TCG). Massive data storage (32 Megabit of non-volatile RAM). Features 1000 ft. (300m) depth rating. Captures an A-Scan waveform snapshot with every measurement; viewable using our Windows PC interface software. Measurement modes: Dual Element – Pulse-Echo, Pulse-Echo w/Coating, Echo-Echo. Single Element – Triple-Echo (TCG). Automatic: probe zero and probe recognition. Data storage formats: Alpha numeric grid and sequential w/auto identifier. Windows PC software included. 3 year limited warranty.
REQUEST QUOTE BUYON-LINE CONTACT US SHOP
Special Gauges
