Labino Standard MPXL
Labino Standard MPXL 35W UV Lights (135 Series & TrAc Series) used for many applications including NDT inspections, Leak
Testing, Crime Scene Investigation (forensics) and many many more.
Labino Standard MPXL 35W UV Lights - Mains & Portable
The Labino Standard MPXL Ultraviolet UV Inspection Lights offer many advantages over previous technology.
Using a new type of low wattage bulb, they produce a higher UV output - yet generate little heat. This means that these black lights are safe to
use in dark areas as they stay cool without the need for inbuilt fans which draw dirt into the lights.
The Labino Standard MPXL ultra violet lights are sealed to IP65 allowing them to be safely splashed with water in Penetrant wash areas. Various
styles of lamps are available operating from either mains or battery power supplies.
Full UV intensity (4000 - 45,000µW/cm2, beam dependant) is achieved after about 5-15 seconds from start up, and can be powered down and
restarted immediately with no wait times. The Labino MPXL series of UV blacklight lamps produce very high UV light intensities, creating
extreme excitation of fluorescent material, which makes it possible to see things, in daylight and at great distances, that was impossible with
former technology.
Unaffected by surrounding magnetic fields and sealed to IP65 standards, in rugged aluminium housings, the Labino UV lights are designed for
the industries where they are used.
Different beam profiles - Floodlight, Midlight or Spotlight. (see below)
Different case styles - To suit differing inspection requirements. (see below)
The choice of a model depends on the conditions under which an operator is using these lamps. Does an inspection need to cover small or
large areas? Does it involve difficult structures and therefore a lighter or more compact lamp is required? Do they simply need more output
power or less power can suffice? We can accommodate all needs!
Beam Profile Choices
Floodlight
• Distribution angle (beam) 45°
• Intensity = >4,000 μW/cm2 (40W/m2)
• Beam Ø >1,200µw/cm² = 250mm
• Visible Light = 2 Lux
Figures at a distance of 38cm (15 inches)
Widest beam but lowest intensity
Midlight
• Distribution angle (beam) 20°
• Intensity = >12,000 μW/cm2 (120W/m2)
• Beam Ø >1,200µw/cm² = 200mm
• Visible Light = 3 Lux
Figures at a distance of 38cm (15 inches)
Medium beam with medium intensity.
Spotlight
• Distribution angle (beam) 3°
• Intensity = >45,000 μW/cm2 (450W/m2)
• Beam Ø >1,200µw/cm² = 125mm
• Visible Light = 10 Lux
Figures at a distance of 38cm (15 inches)
Narrowest beam but highest intensity.
Labino Standard MPXL Model Choices
Labino UV Light - Compact - MPXL
Available as Floodlight, Midlight or Spotlight
Type: 135
Mains Powered designed to be mounted on a bracket.
Comes supplied with two mounting Lugs (F800)
Weight: 2.25kg
Labino UV Light - Compact - MPXL
Available as Floodlight, Midlight or Spotlight
Type: H135
Mains Powered with a top mounted handle
Weight: 2.25kg
Labino UV Light - Compact - MPXL
Available as Floodlight, Midlight or Spotlight
Type: PH135
Mains Powered with a pistol style handle
Weight: 2.25kg
Labino UV Light - Duo - MPXL
Available as Floodlight, Midlight or Spotlight
Type: S135
Mains Powered designed to be mounted on a bracket,
Separate base unit and lamp.
Comes supplied with two mounting Lugs (F800)
Weight: 1.2kg (Lamp Unit) & 1.5kg (Electronic Base Unit)
Labino UV Light - Duo - MPXL
Available as Floodlight, Midlight or Spotlight
Type: PS135
Mains Powered with a pistol style handle, separate base unit
and lamp
Weight: 1.2kg (Lamp Unit) & 1.5kg (Electronic Base Unit)
Labino UV Light - Compact TrAc Series - MPXL
Available as Floodlight, Midlight or Spotlight
Type: TrAc Light H135TL
Battery Powered with a top mounted handle
Weight: 2.32kg including battery
Operating Time: 1 hour 20 minutes approx. (continuous)
Labino UV Light - Compact TrAc Series - MPXL
Available as Floodlight, Midlight or Spotlight
Type: TrAc Light PH135TL
Battery Powered with a pistol style handle
Weight: 2.32kg including battery
Operating Time: 1 hour 20 minutes approx. (continuous)
Labino UV Light - Duo TrAc Series - MPXL
Available as Floodlight, Midlight or Spotlight
Type: TrAc Light Pro
Battery Powered can also be operated via the mains with a
pistol style handle, separate base unit for electronics and
battery.
Weight: 1.2kg (Lamp Unit) & 2.4kg (Electronic/battery Base Unit)
Operating Time: 2 hours 30 minutes approx. (continuous)

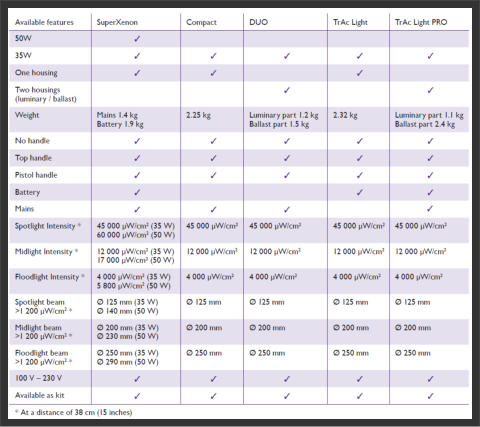

Labino TrAc Series Model Comparison

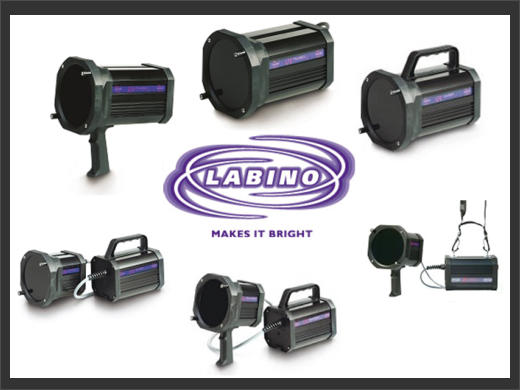

Labino MPXL UV Light Overview

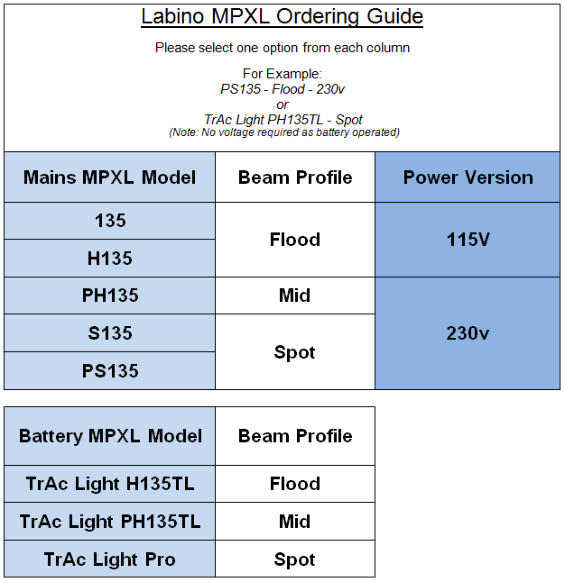

Labino MPXL - Ordering Guide

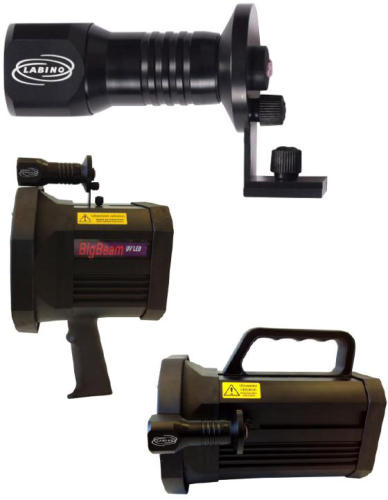

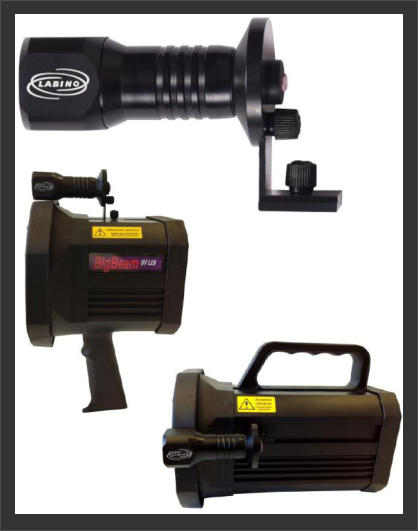

EnLiten - White LED After Inspection Light
(add on optional accessory)
Labino’s mission is to improve the working environment of the operative NDT engineer and create precise instruments that helps identify the
defects. Labino now offers the first white light LED for after inspection especially designed for MPXL lights and BB Series.
The Labino EnLiten (L2001) is a small-sized, Lightweight white light LED lamp designed to be mounted on a Labino MPXL lamp or Labino BB
Series. The Labino EnLiten is designed to be used as an after inspection light (to search for indications) performing NDT.
The lamp is easy to mount on your existing Labino BigBeam or MPXL light as it easily slides into one of the tracks on the side or on the top of
the Lamp.
The small white light accessory lamp is easily mounted on the MPXL or BB Series in a few minutes.
The Labino EnLiten contains one(1) light emitting diode (LED). The LED creates more than 300 Lux (27.9 foot Candle) at a distance of 38cm (15
inches).
Full power is reached instantly. The on/off button is positioned in the back of the lamp for easy activation.
At full charge the battery provides up to 1.5 hours of use. Recharge from a normal outlet with the included chargers. (approx. 2hours).
Weight including battery 121 grams.
UV Protection
Part No: S505 & S400
The Labino UV Blocking Glasses (S505) and Full Faceshield (S400).
These clear lens spectacles and faceshields offer 99.9% protection against ultraviolet radiation, provide
optimum viewing contrast and help reduce fatigue. They are lightweight and fit comfortably.
Products & specifications subject to change without notice. E. & O.E.
Advanced NDT Limited
Unit 4, Elgar Business Centre
Moseley Road
Hallow, Worcester
WR2 6NJ, UK
TEL: 44 (0) 1905 371 460
EMAIL: sales@advanced-ndt.co.uk
Labino Standard MPXL 35W UV Lights (135 Series & TrAc Series) used for
many applications including NDT inspections, Leak Testing, Crime Scene
Investigation (forensics) and many many more.
Labino Standard MPXL 35W UV Lights - Mains & Portable
The Labino Standard MPXL Ultraviolet UV Inspection Lights offer many
advantages over previous technology.
Using a new type of low wattage bulb, they produce a higher UV output
- yet generate little heat. This means that these black lights are safe to
use in dark areas as they stay cool without the need for inbuilt fans
which draw dirt into the lights.
The Labino Standard MPXL ultra violet lights are sealed to IP65 allowing
them to be safely splashed with water in Penetrant wash areas. Various
styles of lamps are available operating from either mains or battery
power supplies.
Full UV intensity (4000 - 45,000µW/cm2, beam dependant) is achieved
after about 5-15 seconds from start up, and can be powered down and
restarted immediately with no wait times. The Labino MPXL series of UV
blacklight lamps produce very high UV light intensities, creating extreme
excitation of fluorescent material, which makes it possible to see things,
in daylight and at great distances, that was impossible with former
technology.
Unaffected by surrounding magnetic fields and sealed to IP65
standards, in rugged aluminium housings, the Labino UV lights are
designed for the industries where they are used.
Different beam profiles - Floodlight, Midlight or Spotlight. (see below)
Different case styles - To suit differing inspection requirements. (see
below)
The choice of a model depends on the conditions under which an
operator is using these lamps. Does an inspection need to cover small
or large areas? Does it involve difficult structures and therefore a lighter
or more compact lamp is required? Do they simply need more output
power or less power can suffice? We can accommodate all needs!

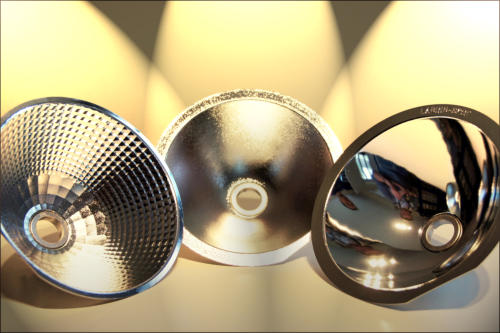

Beam Profile Choices
Floodlight
• Distribution angle (beam) 45°
• Intensity = >4,000 μW/cm2 (40W/m2)
• Beam Ø >1,200µw/cm² = 250mm
• Visible Light = 2 Lux
Figures at a distance of 38cm (15 inches)
Widest beam but lowest intensity
Midlight
• Distribution angle (beam) 20°
• Intensity = >12,000 μW/cm2 (120W/m2)
• Beam Ø >1,200µw/cm² = 200mm
• Visible Light = 3 Lux
Figures at a distance of 38cm (15 inches)
Medium beam with medium intensity.
Spotlight
• Distribution angle (beam) 3°
• Intensity = >45,000 μW/cm2 (450W/m2)
• Beam Ø >1,200µw/cm² = 125mm
• Visible Light = 10 Lux
Figures at a distance of 38cm (15 inches)
Narrowest beam but highest intensity.

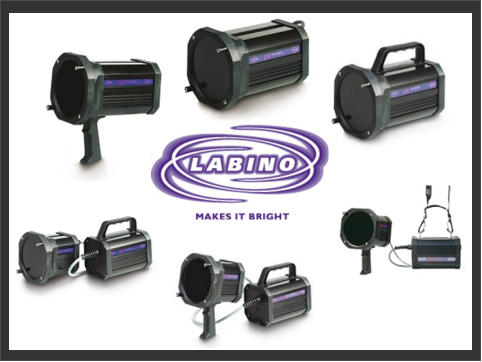

Labino Standard MPXL
Model Choices
Labino UV Light - Compact - MPXL
Available as Floodlight, Midlight or Spotlight
Type: 135
Mains Powered designed to be mounted on a bracket.
Comes supplied with two mounting Lugs (F800)
Weight: 2.25kg
Labino UV Light - Compact - MPXL
Available as Floodlight, Midlight or Spotlight
Type: H135
Mains Powered with a top mounted handle
Weight: 2.25kg
Labino UV Light - Compact - MPXL
Available as Floodlight, Midlight or Spotlight
Type: PH135
Mains Powered with a pistol style handle
Weight: 2.25kg
Labino UV Light - Duo - MPXL
Available as Floodlight, Midlight or Spotlight
Type: S135
Mains Powered designed to be mounted on a bracket,
Separate base unit and lamp.
Comes supplied with two mounting Lugs (F800)
Weight: 1.2kg (Lamp Unit) & 1.5kg (Electronic Base Unit)
Labino UV Light - Duo - MPXL
Available as Floodlight, Midlight or Spotlight
Type: PS135
Mains Powered with a pistol style handle, separate base
unit and lamp
Weight: 1.2kg (Lamp Unit) & 1.5kg (Electronic Base Unit)
Labino UV Light - Compact TrAc Series - MPXL
Available as Floodlight, Midlight or Spotlight
Type: TrAc Light H135TL
Battery Powered with a top mounted handle
Weight: 2.32kg including battery
Operating Time: 1 hour 20 minutes approx. (continuous)
Labino UV Light - Compact TrAc Series - MPXL
Available as Floodlight, Midlight or Spotlight
Type: TrAc Light PH135TL
Battery Powered with a pistol style handle
Weight: 2.32kg including battery
Operating Time: 1 hour 20 minutes approx. (continuous)
Labino UV Light - Duo TrAc Series - MPXL
Available as Floodlight, Midlight or Spotlight
Type: TrAc Light Pro
Battery Powered can also be operated via the mains
with a pistol style handle, separate base unit for
electronics and battery.
Weight: 1.2kg (Lamp Unit) & 2.4kg (Electronic/battery
Base Unit)
Operating Time: 2 hours 30 minutes approx.
(continuous)

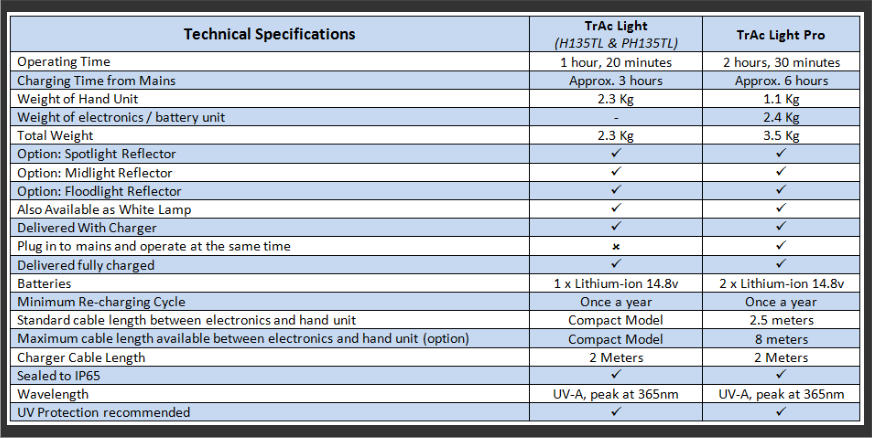

Labino TrAc Series
Model Comparison

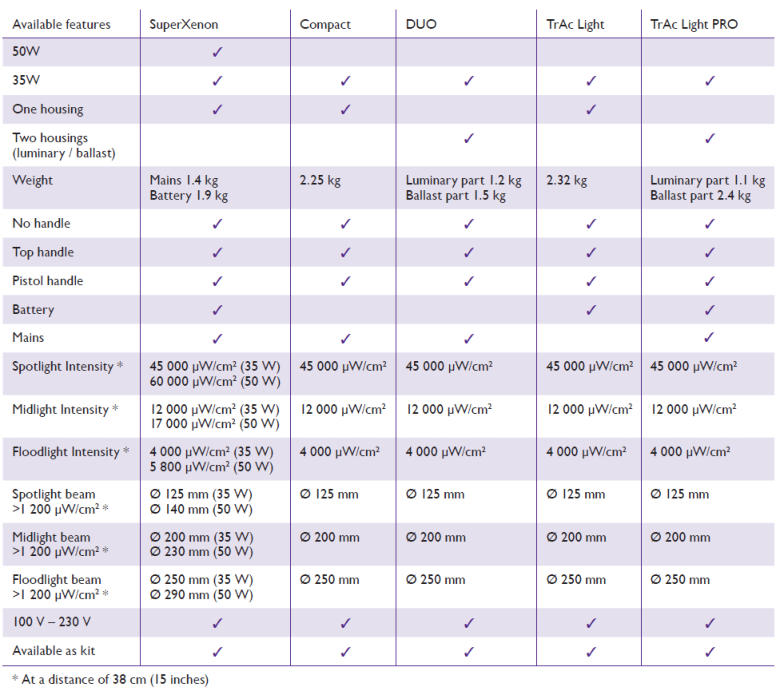

Labino MPXL UV Light
Overview
Labino MPXL - Ordering
Guide

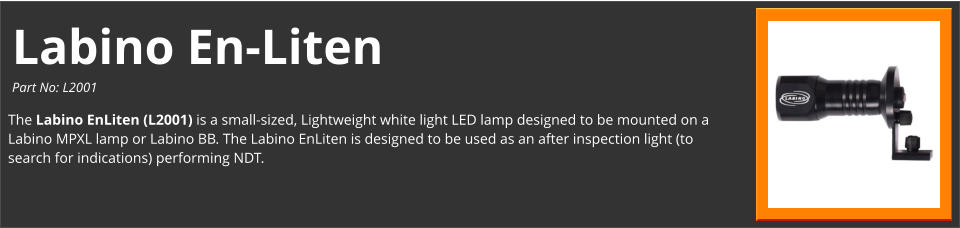

EnLiten - White LED After Inspection Light
(add on optional accessory)
Labino’s mission is to improve the working environment of the
operative NDT engineer and create precise instruments that helps
identify the defects. Labino now offers the first white light LED for after
inspection especially designed for MPXL lights and BB Series.
The Labino EnLiten (L2001) is a small-sized, Lightweight white light LED
lamp designed to be mounted on a Labino MPXL lamp or Labino BB
Series. The Labino EnLiten is designed to be used as an after inspection
light (to search for indications) performing NDT.
The lamp is easy to mount on your existing Labino BigBeam or MPXL
light as it easily slides into one of the tracks on the side or on the top of
the Lamp.
The small white light accessory lamp is easily mounted on the MPXL or
BB Series in a few minutes.
The Labino EnLiten contains one(1) light emitting diode (LED). The LED
creates more than 300 Lux (27.9 foot Candle) at a distance of 38cm (15
inches).
Full power is reached instantly. The on/off button is positioned in the
back of the lamp for easy activation.
At full charge the battery provides up to 1.5 hours of use. Recharge
from a normal outlet with the included chargers. (approx. 2hours).
Weight including battery 121 grams.

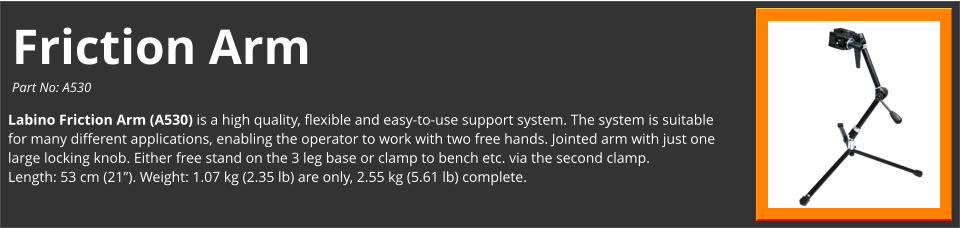

Friction Arm
Part No: A530
Labino Friction Arm (A530) is a high quality, flexible and easy-to-use
support system. The system is suitable for many different applications,
enabling the operator to work with two free hands. Jointed arm with just one
large locking knob. Either free stand on the 3 leg base or clamp to bench etc.
via the second clamp.
Length: 53 cm (21”). Weight: 1.07 kg (2.35 lb) are only, 2.55 kg (5.61 lb)
complete.
UV Protection
Part No: S505 & S400
The Labino UV Blocking Glasses (S505) and Full Faceshield (S400).
These clear lens spectacles and faceshields offer 99.9% protection against
ultraviolet radiation, provide optimum viewing contrast and help reduce
fatigue. They are lightweight and fit comfortably.
Labino En-Liten
Part No: L2001
The Labino EnLiten (L2001) is a small-sized, Lightweight white light LED
lamp designed to be mounted on a Labino MPXL lamp or Labino BB. The
Labino EnLiten is designed to be used as an after inspection light (to search
for indications) performing NDT.
Standard MPXL
MPXL UV Lights
