Labino UVG Series UV LED

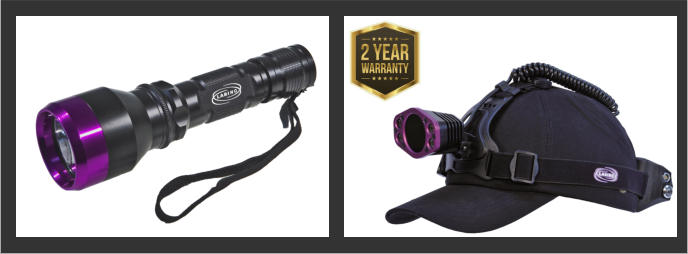

The Labino UVG Series products UVG2-5 are small and compact professional UV LED lights with a powerful output that offer convenience during quick inspections. The UVG 2.0 Series are now IP68 Waterproof and even come with a Two Year Warranty.

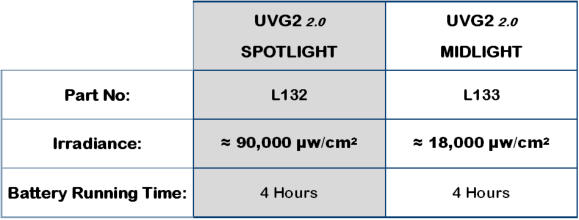

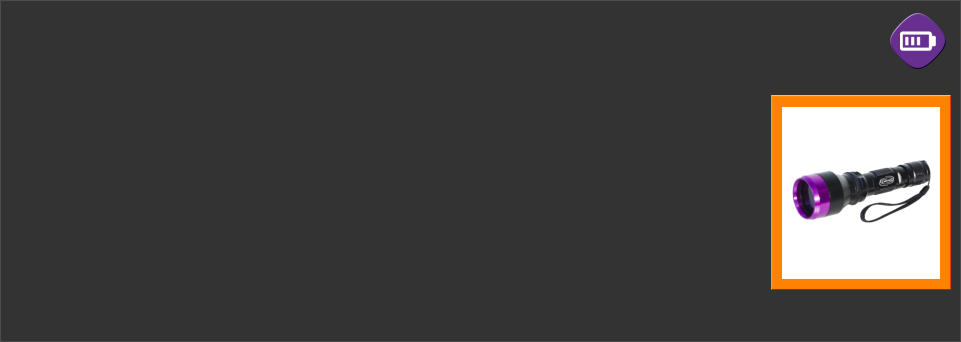

Labino - UVG2 2.0 Part No: L133 (MID) & L132 (SPOT)

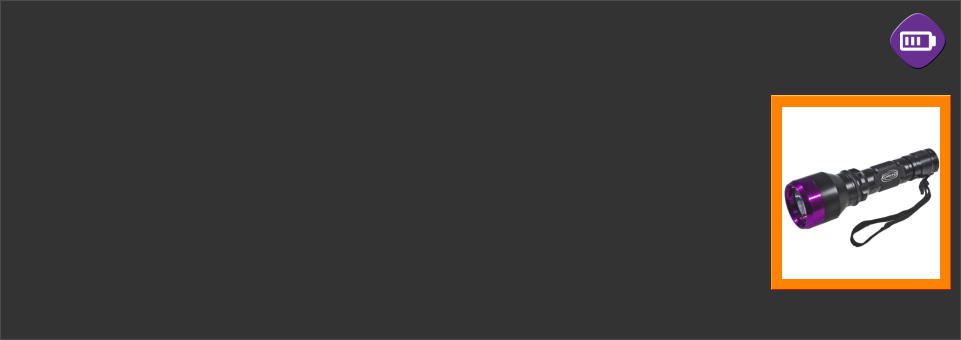

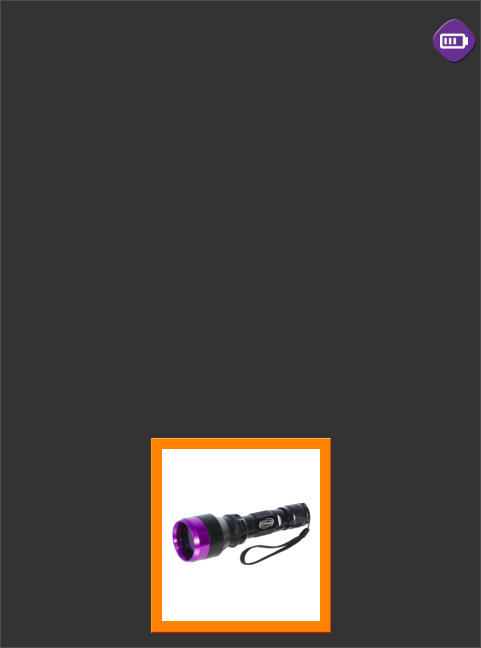

Labino UVG2 2.0 is a small-sized, lightweight, UV-A LED hand held torch designed for quick inspections in “hard-to- reach” spots. The Labino UVG2 2.0 UV LED Torches are used for many uses across various industries such as in Non Destructive Testing for MPI and DPI inspections, Leak detection, Purity Control. They are used by Police forces to detect forensic traces (e.g. body fluids) at crime scenes. They are widely used in the detection of fluorescent tracer liquids (e.g.. SmartWater TM). They are also used by art galleries and museums for Art Restoration and Art Verification. The list of applications using ultraviolet light is increasing all the time. The Spotlight and Midlight UVG2 2.0 torch generate an intensity of approximately 90,000 μw/cm² and 18,000 μw/cm² respectively at 38 cm (15 inches). The running time is 4 hours. They weigh just 211 grams (7.4 oz). Sealed to IP68 Waterproof.

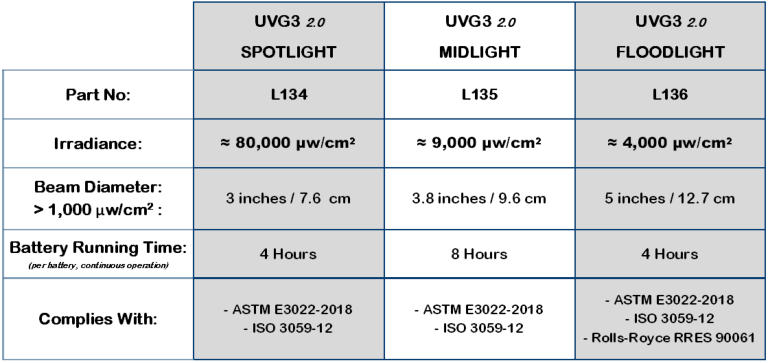

Labino - UVG3 2.0 Part No: L136 (FLOOD), L135 (MID) & L134 (SPOT)

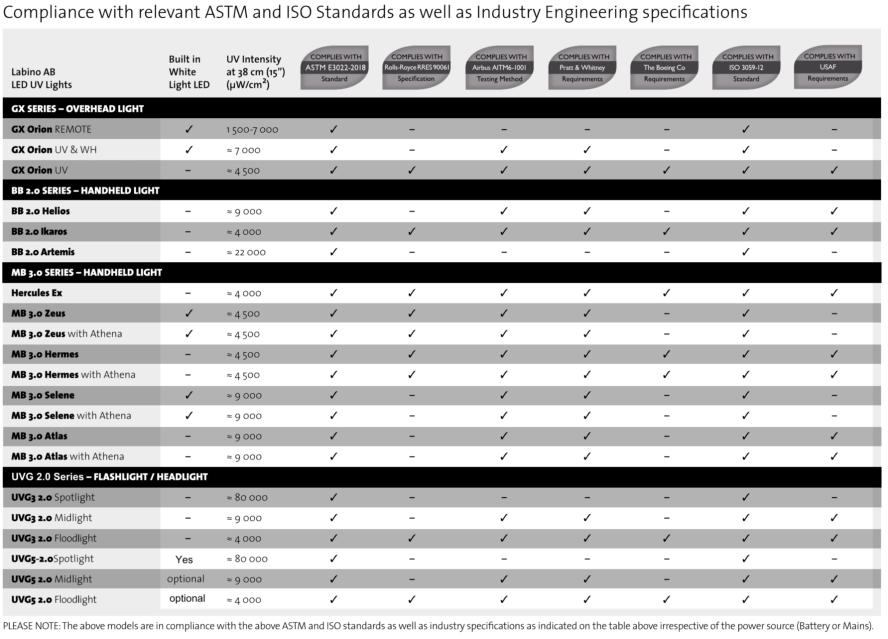

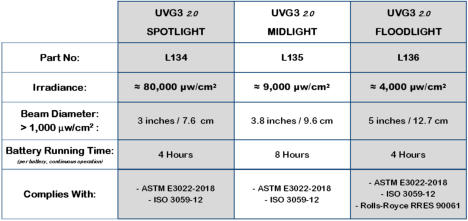

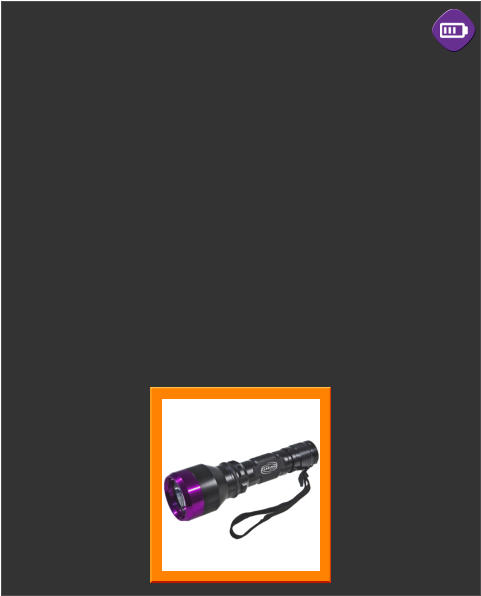

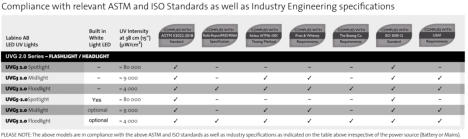

The Labino UVG3 2.0 is a very similar UV LED Torch to the UVG2 2.0 with the addition of a unique white light block filter that is not affected by solarization, for applications where the amount of visible light is critical. This filter eliminates the white light from the lamp and reduces the glare reflected from shiny surfaces i.e. aluminium, when you use the lamp along with UV Block glasses. The FLOOD is in compliance with ASTM E3022-18, Rolls-Royce RRES 90061, Airbus AITM6-1001, The Boeing Company, USAF and Pratt & Whitney requirements. The MID is in compliance with ASTM E3022-18, USAF and Pratt & Whitney requirements. The SPOT is in compliance with ASTM E3022-18 requirements. The Spotlight, Midlight and Floodlight UVG3 2.0 torch generate an intensity of approximately 80,000 μw/cm², 9,000 μw/cm² and 4,000 μw/cm² respectively at 38 cm (15 inches). The running time is 4 hours for the Flood & Spot and 8 hours for the Mid. They weigh just 211 grams (7.4 oz). Sealed to IP68 Waterproof.

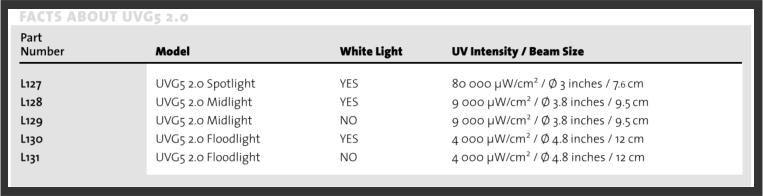

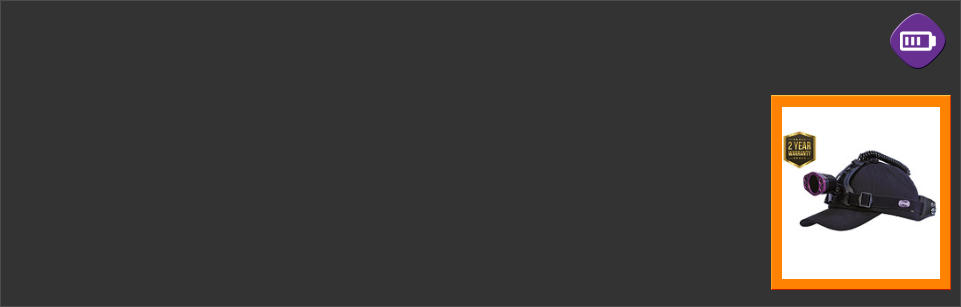

Labino - UVG5-HEAD 2.0 Part No: L127, L141 (SPOT), L128, L129, L142, L143 (MID) & L130, L131, L144, L145 (FLOOD)

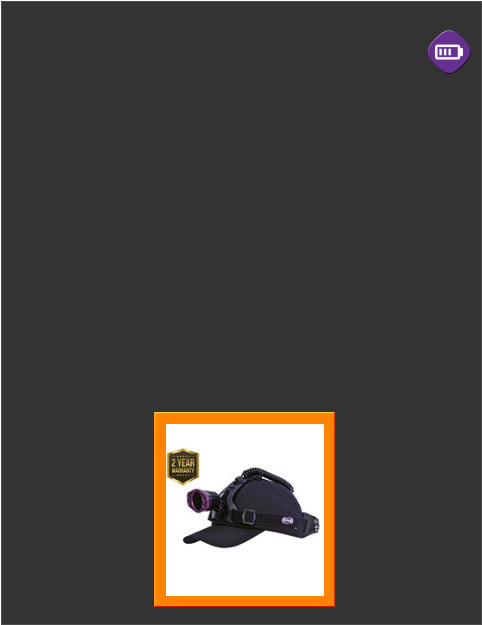

The Labino UVG5 2.0 Head Mounted UV Lamp includes a unique white light block filter that is not affected by solarization, for applications where the amount of visible light is critical. This filter eliminates the white light from the lamp and reduces the glare reflected from shiny surfaces i.e. aluminium, when you use the lamp along with UV Block glasses. All models are available with a white LED Light, the flood and mid versions are also available with no white light. The FLOOD version has been tested to comply with ASTM E3022-18, ISO 3059-12, Airbus AITM6-1001 and Rolls- Royce RRES 90061standards. The Spotlight, Midlight and Floodlight UVG5 head torch generate an intensity of approximately 80,000 μw/cm², 9,000 μw/cm² and 4,000 μw/cm² respectively at 38 cm (15 inches). The running time is 8 hours. They weigh just just 271 grams (9.4 oz). Sealed to be penetrant resistant.

Features • UVG 2.0 Torches and Headlights reach full power instantly. The on/off button is positioned at the back of the torch. Same applies for the headlights, the on/off button is positioned on the battery box at the back. Location of on/off button aims to prevent accidental activation. • The length of the torch is 15.9cm (6.3 inches) and weighs 211 grams (7.4 oz), including battery. Each headlight weighs 271 grams (9.4 oz) including battery. • Each UVG light contains one ultraviolet LED that peaks at 365nm. The life of each LED is estimated at 30,000 hours. • Same batteries can be used for both torches and headlights. Each battery can be recharged from a normal outlet or vehicle via a cigarette lighter connection. Each light comes with an extra battery. • All UVG lights are equipped with a current regulator that keeps the UV Intensity constant even when the battery fades.

Your Choice… A. Torch: UVG2 (clear glass) or UVG3 (white light block filter). Headlight: UVG5 (white light block filter) B. Beam: UVG2 2.0 Torches are available in two different beams, Spotlight and Midlight. UVG3 2.0 Torches are available in three different beams, Spotlight, Midlight and Floodlight. UVG5 2.0 Headlights are available in three different beams, Spotlight, Midlight or Floodlight.

Tripod Part No: A600

The Labino A600 Tripod enables the hands free operation of the LED torches. The legs can be adjusted to free stand on a surface or wrapped around objects to hold the torch in place.

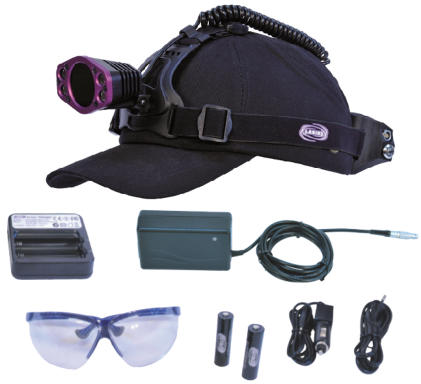

UVG5-HEAD 2.0 Light, Base kit and Full kit Includes: - 1 x UVG5 2.0 Light 1 x Bump Cap 1 x UV Blocking Glasses 1 x Outlet Charger 1 x Car Charger 1 x PSU Charger (FULL KIT ONLY) 4 x Battery 1 x Manufacturers Test Report (where applicable)

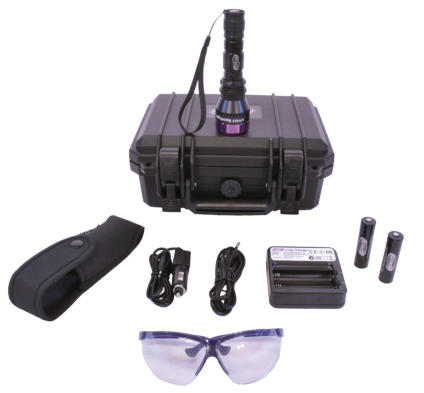

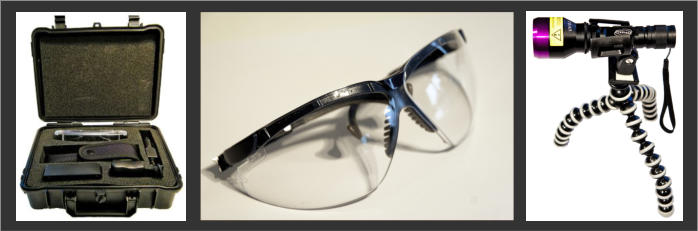

UVG 2.0 Hand Held Torch Kit Includes: - 1 x UVG Torch 1 x Belt Holster 1 x Battery Charger Set 1 x Rubber Bumper 1 x Car Charger 1 x Wrist Strap 2 x Battery (One to Use & One to Charge) 1 x Hard Carry Case 1 x UV Blocking Glasses 1 x Manufacturers Test Report (where applicable)

Labino UVG 2.0 UV LED Torch Kit Contents

UV Protection Part No: S505 & S400

The Labino UV Blocking Glasses (S505) and Full Faceshield (S400). These clear lens spectacles and faceshields offer 99.9% protection against ultraviolet radiation, provide optimum viewing contrast and help reduce fatigue. They are lightweight and fit comfortably.

UVG Variable Gooseneck Arm Part No: A532

The Labino 532 UVG Variable Gooseneck Arm has a clamp at the lower part that mounts on a bench or a hard surface and a clamp at the top specifically designed to fit the UVG series torches. The snake shape body allows the user to form any angle required to keep the torch facing a specific position.

UVG Rubber Bumper Part No: F107

The Labino UVG Rubber Bumper F107 is mounted around the front round bezel and protects the light from drops but also from rolling. It is penetrant resistant.

Labino UVG 2.0 Series UV LED Torches Brochure Button

Products & specifications subject to change without notice. E. & O.E.

Advanced NDT Limited Unit 4, Elgar Business Centre Moseley Road Hallow, Worcester WR2 6NJ, UK TEL: 44 (0) 1905 371 460

EMAIL: sales@advanced-ndt.co.uk

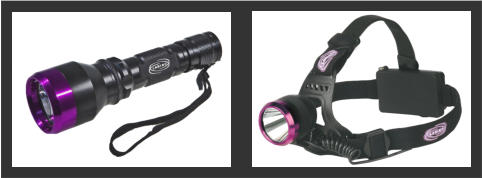

Labino UVG Series UV LED Handheld and Headmounted Torches

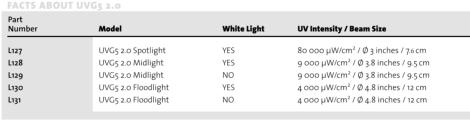

Labino - UVG5 2.0 Part No: L127, L141 (SPOT), L128, L129, L142, L143 (MID) & L130, L131, L144, L145 (FLOOD)

The Labino UVG5 2.0 Head Mounted UV Lamp includes a unique white light block filter that is not affected by solarization, for applications where the amount of visible light is critical. This filter eliminates the white light from the lamp and reduces the glare reflected from shiny surfaces i.e. aluminium, when you use the lamp along with UV Block glasses. All models are available with a white LED Light, the flood and mid versions are also available with no white light. The FLOOD version has been tested to comply with ASTM E3022-18, ISO 3059-12, Airbus AITM6-1001 and Rolls-Royce RRES 90061standards. The Spotlight, Midlight and Floodlight UVG5 head torch generate an intensity of approximately 80,000 μw/cm², 9,000 μw/cm² and 4,000 μw/cm² respectively at 38 cm (15 inches). The running time is 8 hours. They weigh just just 271 grams (9.4 oz). Sealed to be penetrant resistant.

Labino UVG Series

Tripod Part No: A600

The Labino A600 Tripod enables the hands free operation of the LED torches. The legs can be adjusted to free stand on a surface or wrapped around objects to hold the torch in place.

UV Protection Part No: S505 & S400

UVG Gooseneck Arm Part No: A532

The Labino A532 UVG Variable Gooseneck Arm has a clamp at the lower part that mounts on a bench or a hard surface and a clamp at the top specifically designed to fit the UVG series torches. The snake shape body allows the user to form any angle required to keep the torch facing a specific position.

Rubber Bumper Part No: F107

The Labino UVG Rubber Bumper F107 is mounted around the front round bezel and protects the light from drops but also from rolling. It is penetrant resistant.

Labino - UVG2 2.0 Part No: L133 (MID) & L132 (SPOT)

Labino UVG2 2.0 is a small-sized, lightweight, UV-A LED hand held torch designed for quick inspections in “hard-to-reach” spots. The Labino UVG2 2.0 UV LED Torches are used for many uses across various industries such as in Non Destructive Testing for MPI and DPI inspections, Leak detection, Purity Control. They are used by Police forces to detect forensic traces (e.g. body fluids) at crime scenes. They are widely used in the detection of fluorescent tracer liquids (e.g.. SmartWater TM). They are also used by art galleries and museums for Art Restoration and Art Verification. The list of applications using ultraviolet light is increasing all the time. The Spotlight and Midlight UVG2 2.0 torch generate an intensity of approximately 90,000 μw/cm² and 18,000 μw/cm² respectively at 38 cm (15 inches). The running time is 4 hours. They weigh just 211 grams (7.4 oz). Sealed to IP68 Waterproof.

Labino - UVG3 2.0 Part No: L136 (FLOOD), L135 (MID) & L134 (SPOT)

UVG 2.0 Hand Held Torch Kit Includes: - 1 x UVG Torch 1 x Belt Holster 1 x Battery Charger Set 1 x Car Charger 1 x Wrist Strap 2 x Battery (One to Use & One to Charge) 1 x Hard Carry Case 1 x UV Blocking Glasses 1 x Manufacturers Test Report (where applicable)
