UV Spares & Accessories

A selection of Spares, Add-ons & Accessories for our range of UV Lights & Torches.

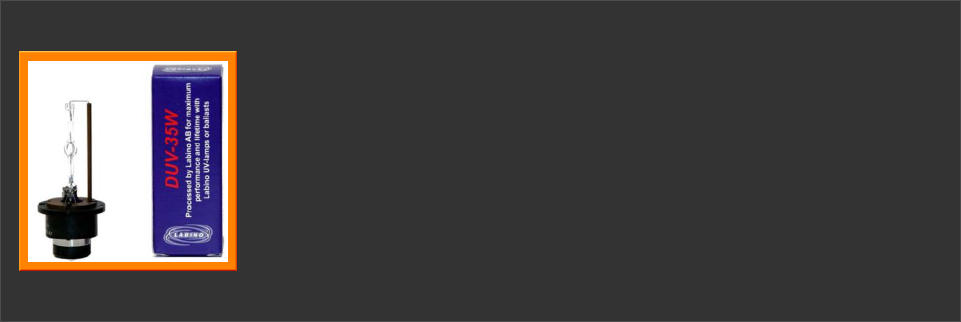

DUV-35W UV Bulb (MPXL)

UV Lamp / UV Bulb Part Number: F101 (DUV-35W) The Labino DUV-35W is an exceptional gas discharge UV Bulb / lamp manufactured in cooperation with Phillips. Our high pressure arc bulb is characterized by superior output performance, intense UV Light with a peak at 365nm, and a service life of over 2000 hours. The Labino DUV-35W is suitable for use in all Labino MPXL 35W UV lights. Use the Labino DUV-35W bulb / lamp only with Labino electronic trigger ballast. Automotive ballast cannot be used.

Trigger Ballast Boards (MPXL)

Trigger Ballast - Electronics used in all MPXL Lamps (100-230VAC) Part Number: F97 (100VAC) Part Number: F98 (115VAC) Part Number: F99 (230VAC) Trigger Ballast - Electronics used in all MPXL Lamps (12/24VDC) Part Number: F100 (12/24VDC) Note: Trigger Ballast Boards must be fitted by a suitably qualified electrician. Trigger Ballast Boards carry a 12 month warranty only if installed by Labino approved suppliers

Reflectors (MPXL)

Reflectors For use in the Labino MPXL range of UV Lights. Part Number: F401 (FLOOD) 45^o angle Part Number: F351 (MID) 20^o angle Part Number: F301 (SPOT) 3^o angle

Filter Glass (MPXL)

Replacement Filter Glass (Front Glass) The Front filter glass can be replaced if damaged. For use with all Labino MPXL UV Lights. Part Number: F70

Mounting Brackets & Stands

Mounting Brackets For use with all Labino MPXL UV Lights and BB Series. Part Number: F800 (U-Shaped Mounting Yoke) Part Number: F801 (Mounting Brackets - set of two) Part Number: F802 (Mounting Bracket with loop - set of two) Stands For use with Labino MPXL, BB and MB Series Part Number: A530 (Labino Friction Arm) - A high quality, flexible and easy-to-use support system, enabling the operator to work with two free hands. Jointed arm with just one large locking knob. Either free stand on the 3 leg base or clamp to bench etc. via the second clamp. Length: 53 cm (21”). Weight: 1.07 kg (2.35lb) arm only, 2.55 kg (5.61 lb) complete. Part Number: A532 (UVG Variable Gooseneck Arm) - The UVG arm has a clamp at the lower part that mounts on a bench or a hard surface and a clamp at the top especially designed to fit the UVG series Torches. The snake shape body allows the user to form any angle required to keep the torch facing a specific position. Part Number: A533 (MB Variable Gooseneck Arm) - The MB arm has a clamp at the lower part that mounts on a bench or hard surface and a screw at the top specifically designed to fit the MB series lights. The heavy-duty snake shape body allows the user to form any angle required to keep the MB facing a specific position.

Mains Chargers & PSU’s (MPXL)

Mains Chargers For use with the TrAc Series of UV Lights. Part Number: B132 (TrAc Pack Standard ) Part Number: B161 (TrAc Light) Part Number: B136 (TrAc Light Pro) Power Supply Units (PSU’s) For use with the TrAc Pack Pro UV Lights. Part Number: B120 (230v PSU Unit - TrAc Pack Pro) Part Number: B122 (115v PSU Unit - TrAc Pack Pro)

Mains Chargers & PSU's for Labino MPXL UV Lights

Batteries (MPXL)

Replacement Batteries For use with the TrAc Series of portable MPXL UV Lights. Part Number: B111 (TrAc Pack Standard & TrAc Pack Pro) Part Number: B112 (TrAc Light) Part Number: B113 (TrAc Light Pro)

Handles, Straps & Misc. Spares

Miscellaneous spares For use with the Labino MPXL UV Lights. Part Number: F141 (Pistol Handle) Part Number: F142 (Top Handle) Part Number: F62 (Cable Bend Protection) Part Number: S201 (On/Off switch) Part Number: F60 (O-ring front) Part Number: F143 (Shoulder Strap to suit TrAc Pack Standard & TrAc Pack Pro) Part Number: F145 (Shoulder Strap to suit TrAc Light Pro) Part Number: F61 (Heat Protection pin - one supplied)

Spare Handles & Straps for Labino UV Lights

En-Liten White Light Add-on

En-Liten LED White Light Add-on For use with all Labino Standard MPXL UV Lights. Also suitable for use with Labino BB Series LED UV Lights. Part Number: L2001 (En-Liten LED White Light attachment)

UVG LED Torch Spares

UVG2 & UVG3 Spares For use with all Labino UVG UV LED Torches. Part Number: B201 (UK Battery Charger) Part Number: B115 (Battery) Part Number: B160 (Car Charger) Part Number: A532 (UVG Variable Gooseneck Arm) Part Number: F107 (UVG Rubber Bumper) Part Number: C3100 (Hard Carry Case) Part Number: A600 (Tripod Stand

VISION 365 LED Torch Spares

VISION 365 Spares For use with VISION 365 (UV365) UV LED Torches. Part Number: B201 (UK Battery Charger) Part Number: B115 (Battery) Part Number: B160 (Car Charger) Part Number: C3100 (Hard Carry Case) Part Number: A600 (Tripod Stand

UV Protection

UV Blocking Glasses & Face Shield For use with all UV Lights. Part Number: S505 XC (Regular fit glasses) Part Number: S400 (UV Blocking Visor Full face protection)

Labino Stands & Mounting Brackets Brochure Button

MB Series Spares

MB UV LED Light Spares For use with the MB UV LED Lights. Part Number: F111 (Rubber Bumper) Part Number: A504 (MB Belt Holster) Part Number: A533 (MB Variable Gooseneck Arm) Part Number: F105 (Thumb Screws) Part Number: A601 (Magnet for PSU Holder) Part Number: B115 (Spare Battery) Part Number: B201 (External Battery Charger Set - UK) Part Number: B321 (Internal Battery Charger Set - UK) Part Number: B325 (PSU for Mains Only Models - UK)

Note: Other spares are available please contact us with your needs.
