Avenger Series
The Avenger II and The Avenger EZ are versatile hand-held Ultrasonic Flaw Detectors built to last.
Ultrasonic Flaw Detectors Button

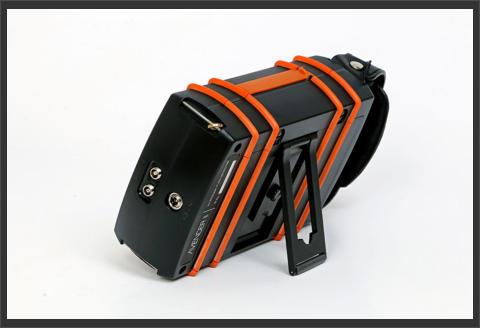

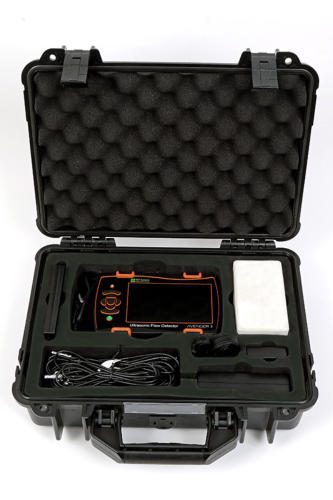

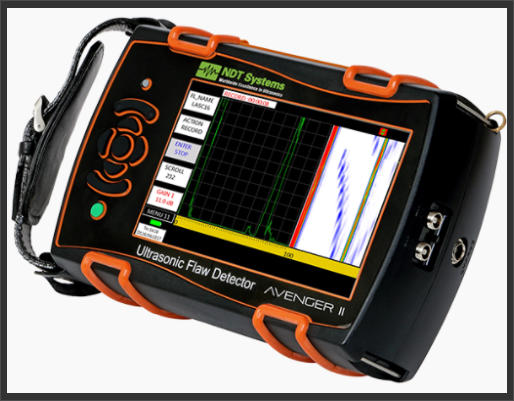

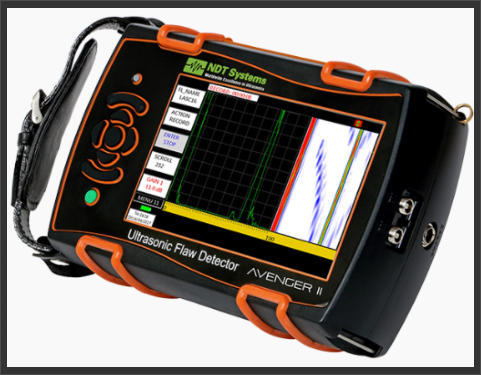

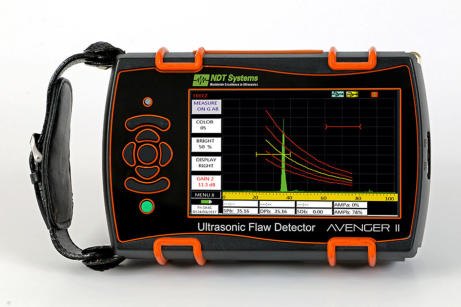

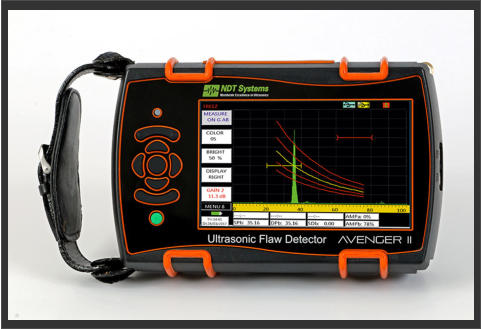

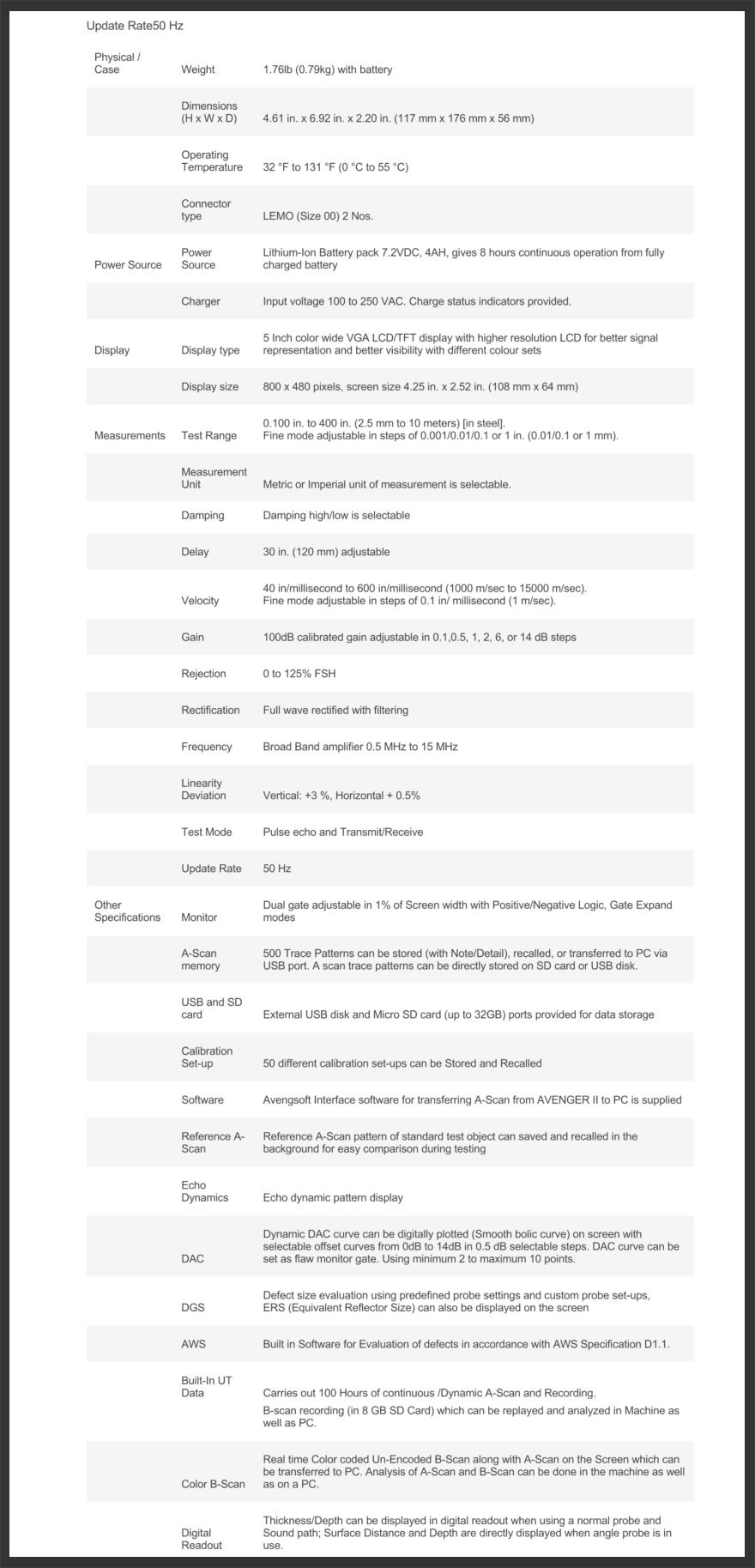

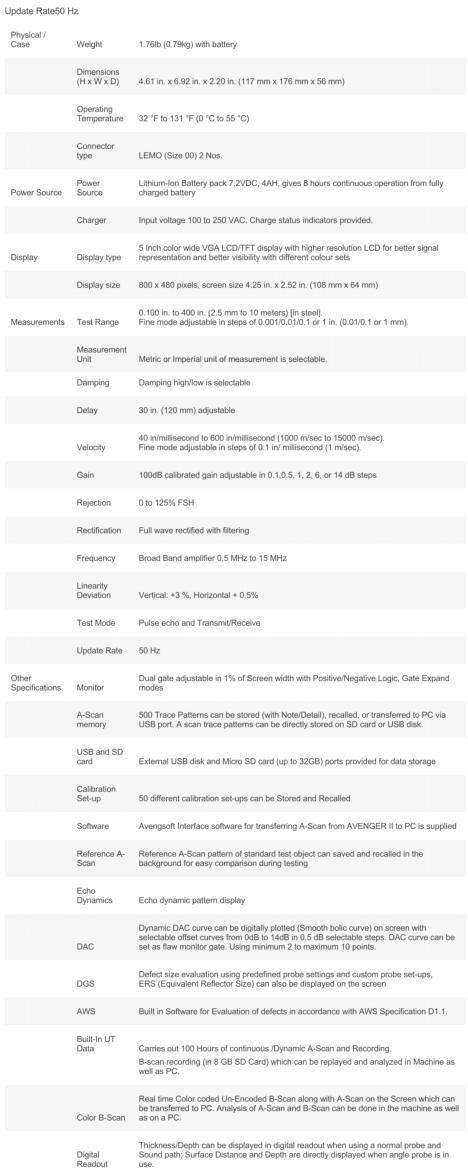

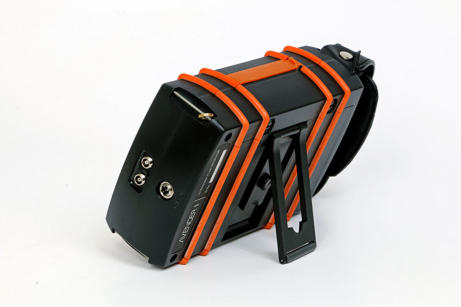

The Avenger II The Avenger II is rugged lightweight, hand-held ultrasonic instrument utilized daily in the evaluation of Investment Castings, In Service Inspection, Plastics, and Turbine blades, Tanks, Tubes and Pipes. Incorporating a palmtop design with a light weight of 800 grams, the Avenger II allows for a grip-orientated weight distribution to maximize ultrasonic testing efficiency. Single hand operation frees up the user’s other hand to manoeuvre the probe for a thorough inspection. By utilizing a few keys, the operator can toggle through the menu navigation functions along with the menu architecture of the operating system with ease. A ‘Display Rotation’ or ‘Flip’ feature is an added benefit to assist left-handed users (as well as right) with inspections. The Avenger II flaw detector includes a Micro USB connection for fast data transfer and the Micro SD Card Slot enables data storage that is expandable up to 32 GB, upon request. Additional standard features are the I/O port for Single Axis Encoding capability, Input and TTL output for an external monitor alarm. The Avenger II features a high capacity Li-Ion battery providing 8 hours of continuous operation with full charge. On board analysis tools and reporting capability enhances the user experience and delivers high quality inspection data.  The Avenger is designed to operate a high level in all types of environments and meets the American Welding Society (AWS) standards as well as other published guidelines/requirements. Features: • Ultralight, weighs only 800g • Code compliant to AWS Standards • 2 Point Auto calibration • Single Axis Encoded Scans • A-Scan Capture as standard / 100 hours of UT data recording • A-Scan and B-Scan Data analysis on the instrument and PC • CE Marked • Ruggedized – IP 66 (Dust Tight, High Pressure Water Jet Safe) Applications Include: • Chemical milling • Investment Castings • Turbine blades • Tube and Pipe • Tanks • Boilers Glass • Metals, plastics, composites, glass, rubber
Request Quote Button Request Quote Button SHOP NDT Systems Avenger EZ Ultrasonic Flaw Detector

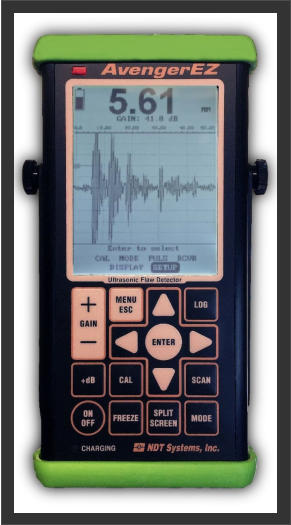

The Avenger EZ The Avenger EZ is a small, lightweight but robust hand-held ultrasonic flaw detection unit with a large clear LCD Display. The All New, High Performance, Avenger EZ Ultrasonic Flaw Detector. This NEW Miniature Ultrasonic Flaw Detector offers a high speed rep rate, real time 320x240 pixel (QVGA) A-Trace (40Hz update) display, Distance Amplitude Flaw Gating (DAG), Weld Trig, Freeze and Insta-Freeze for Spot Weld Applications, Precision Thickness Measurement capability, combined Flaw & Thickness Mode, 2 Megabyte of memory for substantial storage capability, USB connectivity, High Speed Scrolling & Encoded B-Scan, IP & IF Gating, Adjustable Damping, Robust rubberised top and bottom caps help protect the Avenger from a 5 foot drop to concrete, new scratch resistant LCD screen cover and more... The Avenger EZ Ultrasonic Flaw Detector once again sets the standard in performance. Split-view: Split-view is Dual Timebase feature allowing the user to view the full range of the area under inspection in one window while at the same time presenting the user with a resizeable second window. The second window has a separately adjustable, Range and Delay. The second window can be fixed a a specific place in time or set to automatically track (Auto-track) an echo over a predefined level. Split-view also provides the ability to resize the top to bottom window proportion. For instance, the top window can be set to 10% of the available active display while the lower window would be 90%. Split-view can be turned off to use the entire screen for a single large waveform display. SplitScan: SplitScan is a operating mode allowing the user to view the active waveform while performing a Real Time B-Scan, whether timed or encoded. The feature gives the user positive feedback and identification of indications such as corrosion and pitting in real time. AutoTrack: AutoTrack is a feature where the second window has a separately adjustable, Range and Delay. The second window can be fixed a a specific place in time relative to the main upper window or set to Automatically Track (AutoTrack) an echo over a predefined level. While in AutoTrack, the echo being tracked will display in the centre of the lower window regardless of the actual place it is in time. This features allows the user to easily view where on the echo waveform the gauge is monitoring in a zoomed fashion. Features: • Lightweight, hand-held • Split-screen, A-trace, B-scan • USB, data logging, alarm modes • Standard package includes instrument, Pelican style shipping/storage Hard Carry case, manual, batteries and AC charger • SplitScan view - Display A-Trace and B-scan simultaneously • AutoTrack - Auto Tracking Zoom • Dual A-Trace SplitView • Multiple Gate capability • Peak Echo hold: fixed or unique timed 'waterfall' reset • Calibration - Range, Delay, Zero and Velocity • Multiple probe capability (can use many probe types and makes) • Auto probe recognition or library selectable • Adjustable Gain • Back light - on/off/auto • Alarm modes - LED thickness high, low or high/low • Programmable user set-ups • Encoded B-scan, (scanner optional) • Time encoded B-scan • Screen freeze mode, freeze and save • DAC- Distance Amplitude Correction (Optional extra) • AWS - Calculations (Optional extra) Applications Include: • Chemical milling • Investment Castings • Turbine blades • Weld Inspections • Crack Detection • Tube and Pipe • Tanks • Boilers • Glass • Metals • Plastics • Composites • Glass • Rubber

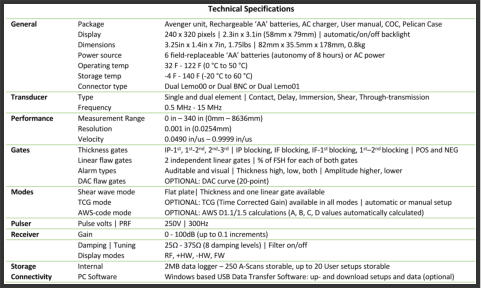

NDT Systems Avenger EZ Ultrasonic Flaw Detector Technical Specifications NDT Systems Avenger EZ Ultrasonic Flaw Detector Brochure Button NDT Systems Avenger EZ Ultrasonic Flaw Detector in hand with split screen function displayed Request Quote Button Request Quote Button
