SIUI Smartor

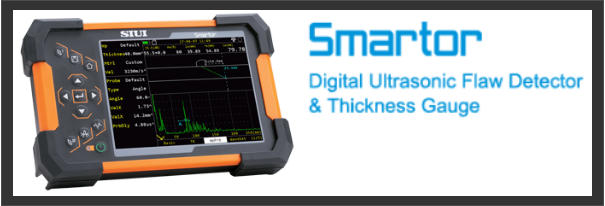

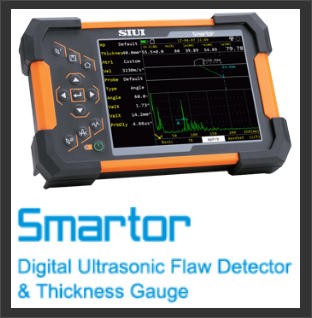

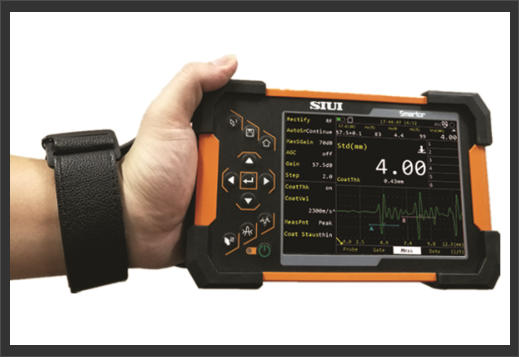

The SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector & Ultrasonic Thickness Gauge. One-hand Operation, Smart Test Wizard, Weld Simulation, Advanced Conventional UT & Thickness Measurement.
Ultrasonic Flaw Detectors Button
The SIUI Smartor is a combination of ultrasonic testing (UT) and ultrasonic thickness measurement (TG) The Smartor is available as either an Ultrasonic Thickness Gauge or an Ultrasonic Flaw Detector with the option to upgrade the software to include both in the same unit. Many other optional software upgrades are available to suit your requirements. Please contact us for further details and pricing. High IP rate: IP 66 Compact size: 198 (W)* 128 (H) *52 (L) mm Light weight: 0.9kg only, including battery 5.7" LCD with high resolution 640×480 pixels Adjustable pulse width, negative square wave transmission up to 350V. Operating frequency range: 0.5~20MHz, multiple steps of wide broadband and arrow-band for selection. Easy operation: only a few buttons, intuitive interface and logical menu, support right-hand and left-hand operation, outdoor mode. Multiple conventional UT functions -  Weld, plate and forging test wizards are available, which can guide users to perform setup easily and improve inspection efficiency. -  Peak memory, DAC curve, AGC (auto gain control), video record makes convenient and efficient flaw inspection. -  Optional functions: B-scan, TCG, probe spectral analysis, CSC (curved surface correction), weld simulation, crack height measurement, BEA (backwall echo attenuation), AWS D1.1/D1.5, API 5UE. Multiple thickness measurement functions -  A-scan thickness measurement(echo to echo mode, through coating measurement) -  Auto-search, velocity measurement, alarm and dataset management. -  Optional functions: coat thickness measurement, B-scan, multi-layer measurement, V-PATH, TDG and temperature compensation. System ports: encoder, VGA, SD card, USB EN12668-1: 2010/ASTME317(for UT) & EN15317-2007(for TG) compliant

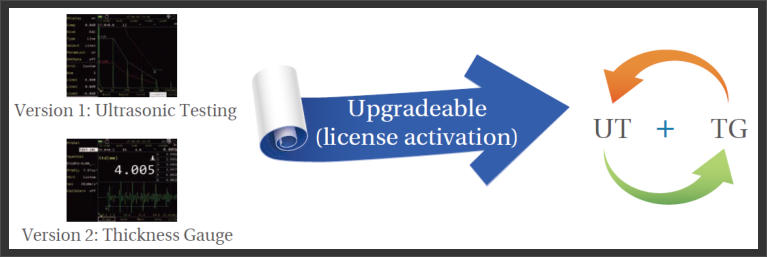

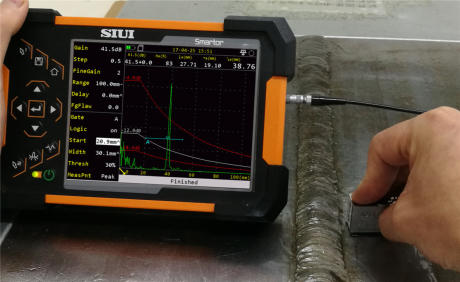

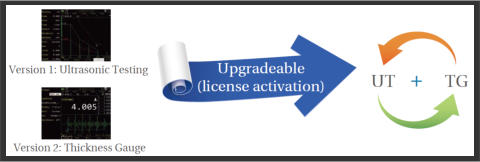

SIUI Smartor Brochure Button SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector & Ultrasonic Thickness Gauge SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector & Ultrasonic Thickness Gauge Upgradeable license SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector & Ultrasonic Thickness Gauge in action
Ultrasonic Testing
SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector & Ultrasonic Thickness Gauge Screenshot showing the Test Wizard SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot showing the B-Scan Mode
Test Wizard
B-Scan

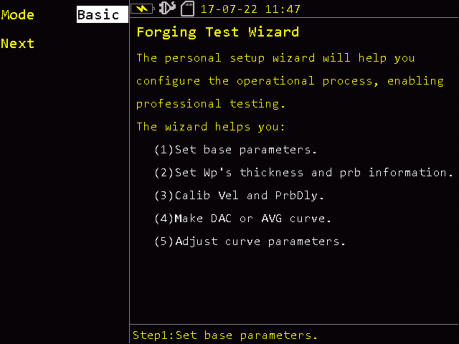

Set-up wizard will help users configure the professional operation process, enabling more professional testing.

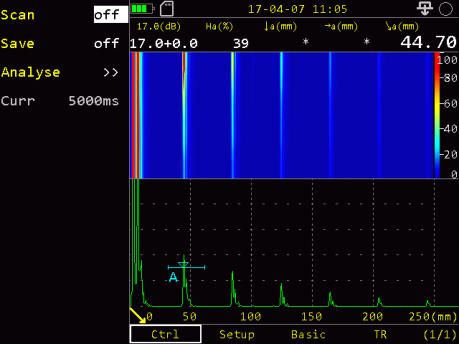

Display A-Scan echo in imaging mode based on time or encoder, so as to achieve more intuitive test results for observation and analysis.

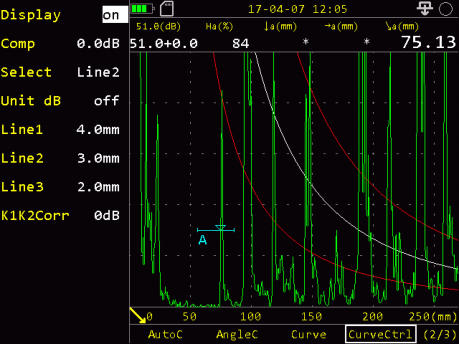

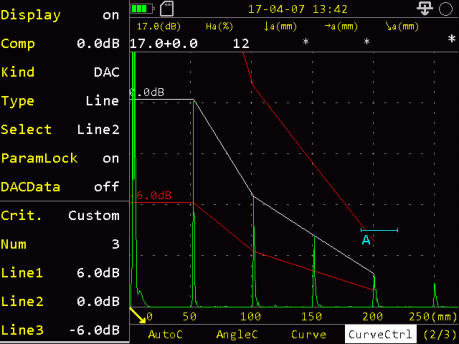

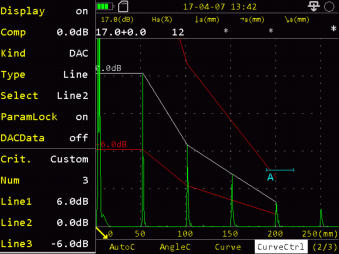

SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot showing the DAC Curve Mode
DAC Curve
Bring easier and more convenient flaw evaluation.
SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot showing the AVG / DGS Curve
AVG/DGS Curve
Auto created by taking a known flat-bottom hole or large flat-bottom echo for reference.

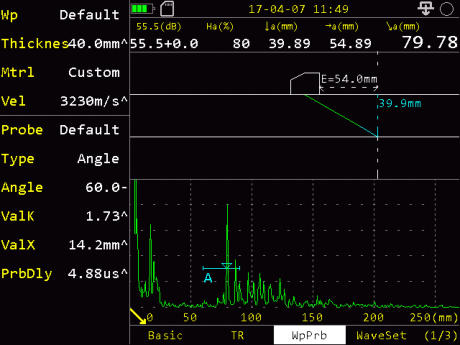

SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot showing the Weld Simulation Function
Weld Simulation
Simulate the weld shape and use the dynamic beam tracking function to assist the user to quickly determine the location of the flaws in the weld.
SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot showing the Probe Spectral Analysis
Probe Spectral Analysis

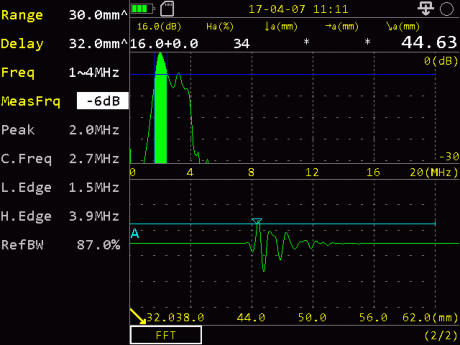

The probe waveform, spectrum and centre frequency of the probe can be measured precisely by capturing echoes.

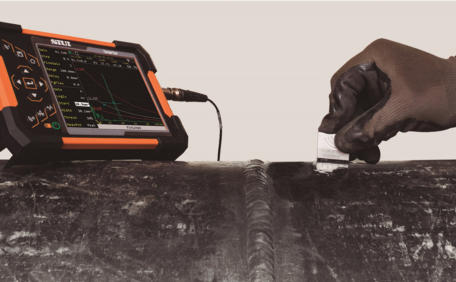

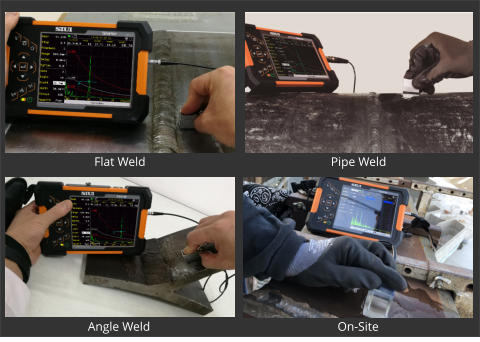

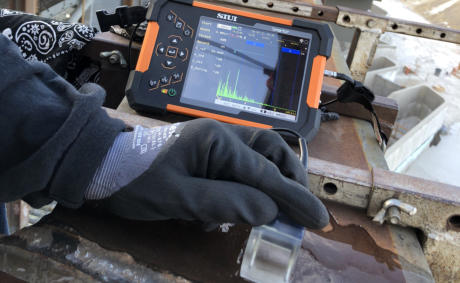

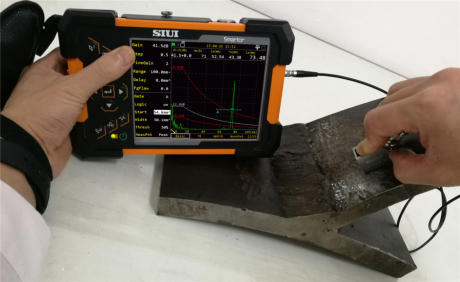

SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot Testing Welds On-Site SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot Testing an Angle Weld SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot Testing a Flat Weld SIUI Smartor Highly Portable Digital Ultrasonic Flaw Detector Screenshot Testing a Pipe Weld
Flat Weld
Pipe Weld
On-Site
Angle Weld
Thickness Measurement

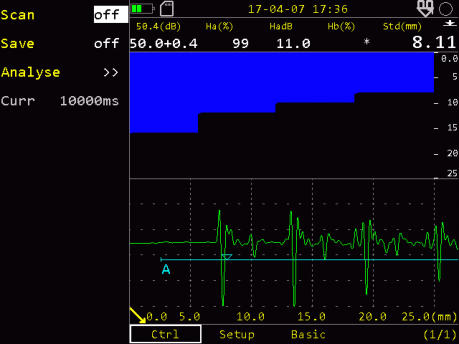

SIUI Smartor Digital Ultrasonic Thickness Gauge Screenshot Showing B-Scan Mode
B-Scan
Based on time internal or encoder, display the measurement readings in B-mode image.

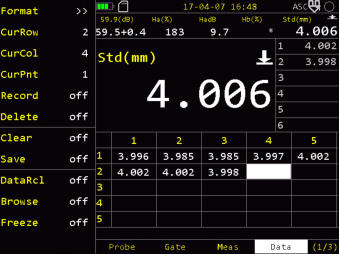

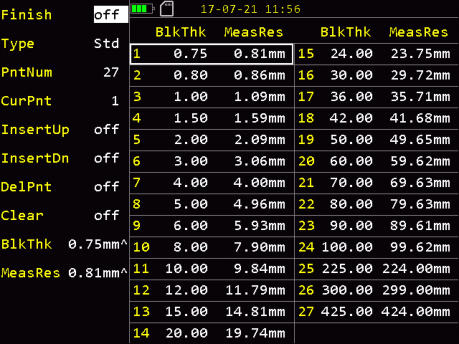

SIUI Smartor Digital Ultrasonic Thickness Gauge Screenshot Showing Data Set Management (Data Logging)
Data Set Management

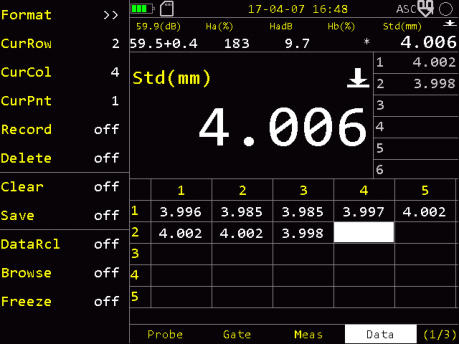

Measurements recorded and displayed in grids.

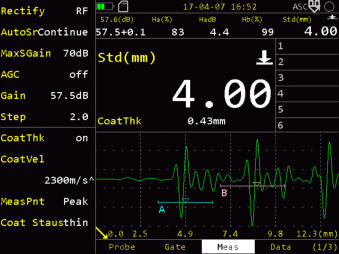

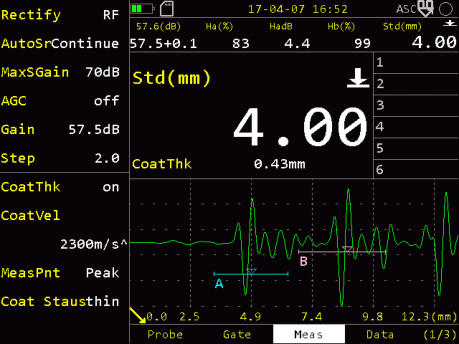

SIUI Smartor Digital Ultrasonic Thickness Gauge Screenshot Showing Through Coating Measurement
Through-Coating Measurement
After setting the coating velocity, coat and base material thickness can be displayed at the same time.

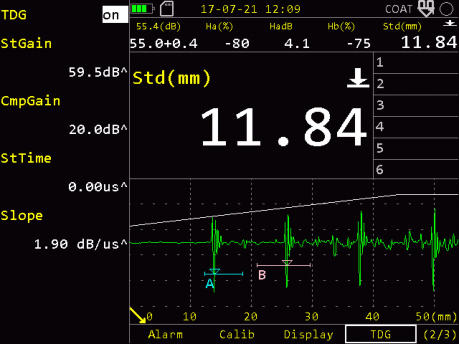

SIUI Smartor Digital Ultrasonic Thickness Gauge Screenshot Showing TDG - Time Distance Gain Curve
TDG (Time Distance Gain Curve)
It can be used for compensating the loss of echo amplitude due to propagation of sound path

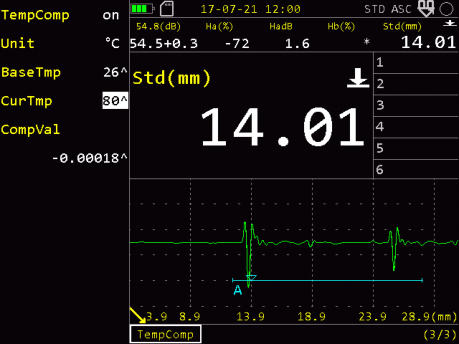

SIUI Smartor Digital Ultrasonic Thickness Gauge Screenshot Showing TempComp Function
TempComp Function
When there is temperature difference between the calibration block and the detected work piece, it can be used for temperature consumption.
SIUI Smartor Digital Ultrasonic Thickness Gauge Screenshot Showing V-PATH Function
V-PATH Function
All the original dual element probes have a set of default V-PATH calibration curves. Users can make a set of UserVpatch curves for a specific probe.

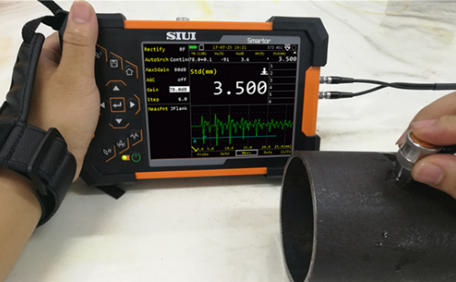

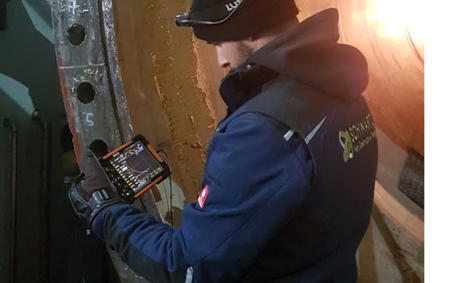

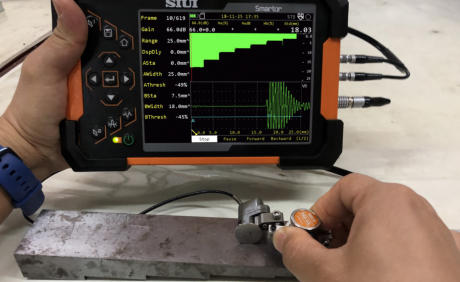

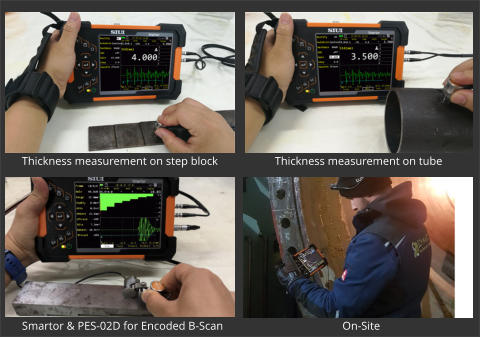

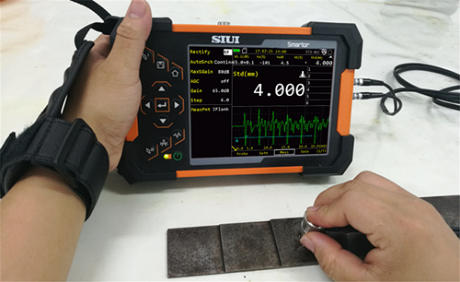

SIUI Smartor Thickness Measurement in use in the field SIUI Smartor Thickness Measurement on a step block using the PES-02D for encoded B-Scan SIUI Smartor Thickness Measurement on a step block SIUI Smartor Thickness Measurement on a Tube
Thickness measurement on step block
Thickness measurement on tube
On-Site
Smartor & PES-02D for Encoded B-Scan

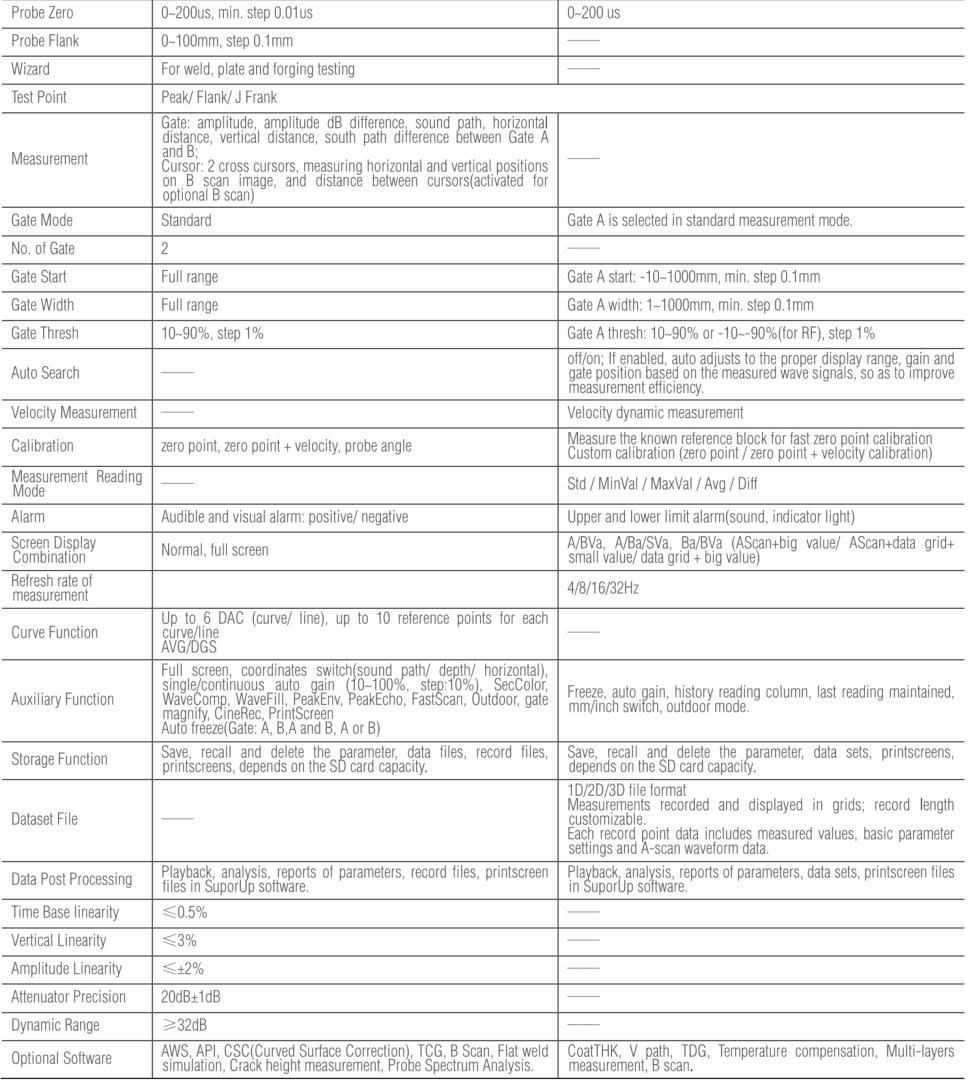

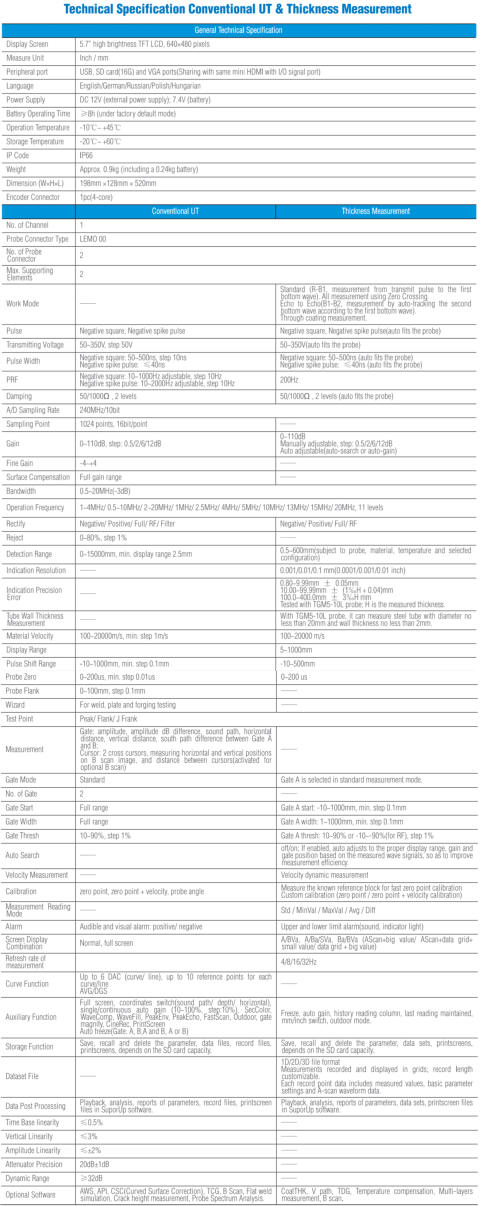

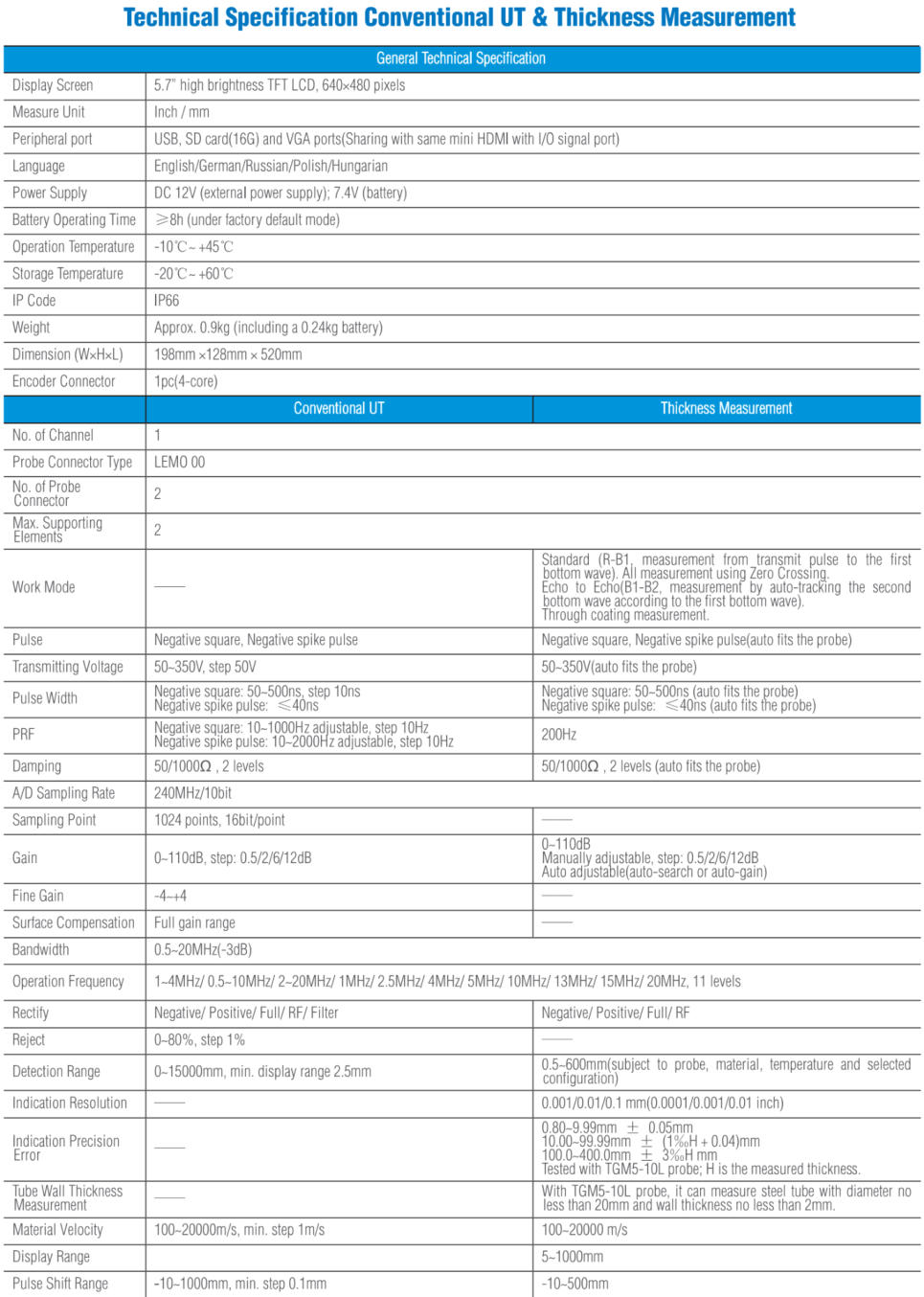

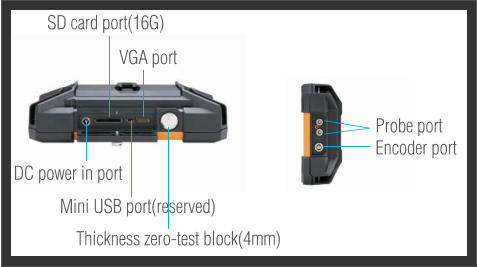

SIUI Smartor Technical Specification Conventional UT & Thickness Measurement SIUI Smartor parts labelled Ultrasonic Thickness Gauge Button Ultrasonic Thickness Gauges Page Button Ultrasonic Flaw Detectors Button Request Quote Button Request Quote Button SHOP
