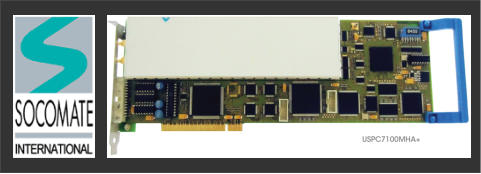

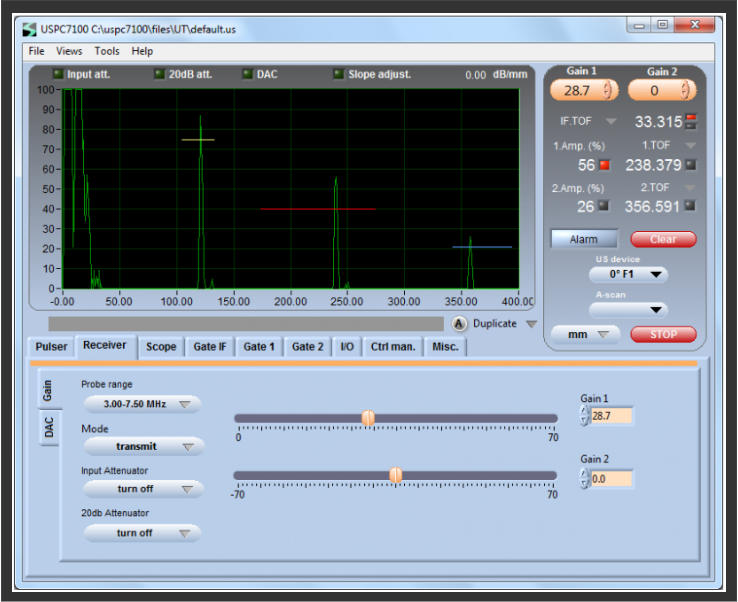

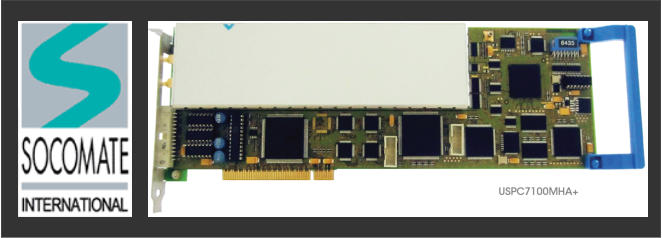

The Socomate USPC All in one Ultrasonic PC cards (formerly USPC 3100). USPC7100 is used in many applications through out the NDT field. It combines excellent results in surface resolution, temporal linearity and amplitudes. The ultrasonic signal is sampled through a 100 or 200 MHz digitizer allowing thus a higher measurement accuracy. Benefit an A & C-Scan real time data acquisition via the DLL.

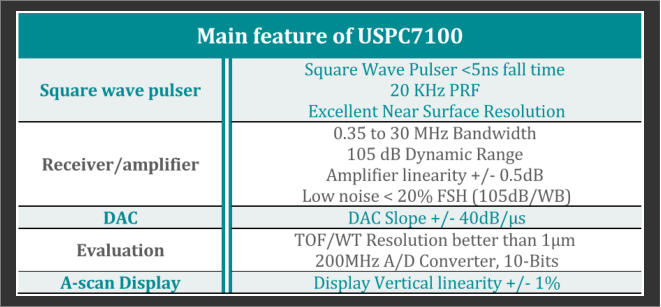

The Benchmark in PC based single channel pulser-receiver USPC7100LA Single Channel Pulser-Receiver - PCI Card A & C-SCAN REAL TIME DATA TRANSFER THROUGH PCI BUS TO DLL ANY LANGUAGE - Easy translation with .txt files (Notepad) The Socomate USPC cards offer outstanding performance at a low cost. Simply plug the card into a conventional PC to produce a high performance Ultrasonic flaw detector. The PC cards have excellent resolution, signal to noise and features, yet are very easy to use. With a Pulse repetition frequency of up to 20KHz, the cards are ideal for both single channel work such as immersion testing (approved for use on RPS 705 by Rolls Royce) or rack mounted to give multiple channels in automated testing systems. • A multiplexer board is available to give up to eight channel operation in an economical package. • Up to 8 sequential tests with independent settings from one card. • Back echo tracking with gate 1. • The New USPC7100 Series Cards replace the USPC3100 Series but both have very similar characteristics UNIQUE FEATURES • Square wave pulser < 5ns fall time • 0.35 to 30 MHz Bandwidth • 200 MHz A/D Digitizer, 10-Bits • Amplifier linearity ± 0.5 dB • Excellent near surface resolution • TOF/WT Resolution better than 1µm • 20 KHz PRF • 105 dB Dynamic Range • Low Noise < 20% FSH  (105dB/WB) • Display Vertical Linearity ± 1% • DAC Slope ± 40 dB/µs • Multitest: Up to 8 Real Time Data Inputs / Outputs: • 8 Analogue Outputs: Peak Amplitude / TOF / WT • 9 GO / NO GO ALARMS Outputs: 0 to 30 Volts • TRIGGERS: Internal or External Inputs SQUARE WAVE PULSER • Voltage: 125/250 Volts (50 Ohms) • Fall-time & Rise Time: 5ns & 7.5ns • Rep Rate: 20 to 20,000Hz • External Trigger divider: 1 up to 1024 • Pulse width: 25ns to 1,000ns • External trigger: 5 Inputs RECEIVER/AMPLIFIER • Impedance: 50 Ohms • Bandwidth: 0.5 to 30 MHz Analogue - 0.35 to 24MHz Digital • Gain: 70dB adjustable (0.1dB step) • Input Attenuator: 0 / 15dB • Attenuator: 0 / 20dB • Dynamic Range: 105dB • Mode: Pulse-Echo / Transmission • Bandwidth (MHz): 0.35-0.85 / 0.75-1.8 / 1.3-3.2 / 5-15 / 10-19.5 / WB • A-Scan Rejection: 0 to 50% • A-Scan Base line offset: 0 to 10% RF • Output: 2.0Vpp (50 Ohms) 1.5Vpp FSH • Multitest: Up to 8 sequential tests per single channel PCI Card DAC • Triggers: Initial Pulse / Interface echo / Artificial • Dynamic Range: 70dB Slope: +/- 40dB/ µs • Segments: 30 Auto Slope Adjustment (dB/µs) GATES vGATE IF (yellow) • GATE 1 (red) & GATE 2 (blue) • All Gates fully independent • Start: 80ns to 655µs - 20ns step • Width: 20ns to 655µs - 20ns step • Level: 10% to 90% - 1% step • Double threshold: Gates 1 & 2 • Triggers: Not active / Initial pulse / Interface / Artificial on Gates 1 & 2 and Gate to Gate on Gate 2. Back-echo tracking on Gate 1 Flaw In-line • Flaw Alarm: Positive / Negative Noise suppression: 0 to 30 violations Flaw Mode: Max. or First Echo Peak Amplitude on Gates 1 & 2 only TOF/WALL THICKNESS In-line • Alarms: Min. & Max. • Noise suppression: 0 to 30 violations • Mode: First echo on Gate IF and Max. or first echo on Gates 1 & 2 • Origins: Peak, Flank, Zero Crossing • Gating Mode: HW+, HW-, FW & RF • WT Data Process (DSP): Upper & Lower Limits, Max Deviation, filtering, averaging etc… A-SCAN DISPLAY • Mode: HW+,HW-, FW & RF • Gates: Yellow (IF), Red (G1) & Blue (G2) • DAC Curve: 0 % to 70 % FHS (0-70dB) • Delay : 0 to 655µs / 20ns step • Range : 1µs to 1.3ms - 20ns step • Trigger : Initial Pulse / Gate 1 Start / Gate 2 Start / Gate 1 Trigger / Gate 2 Trigger • Displayed Peak : Snapshot or Max. Peak • Velocity : Interface or Material • A-Scan length : 100 to 512 points • Acquisition mode : Free running or external • Angle Beam Trigonometry: Distance & Depth • Units : µs / mm / inch / Composite ply restitution • Moving averaging: on 1 / 2 / 4 / 8 / 16 A-Scan EVALUATION • Digitizer: 200MSamples/s, 10-bits • Amplitude Resolution: 1% FSH • TOF Resoloution: 10ns or 5ns • WT Resolution: <1µm in zero crossing MEMORY vPCI Cards allow to transfer A & C-Scan data in real time, parameter settings, A-Scan scope display, C-Scan from all Gates with amplitude / TOF/ • WT and alarms read out. ANALOGUE OUTPUTS • Amplitude / TOF / WT: 0-5 volts full scale (8-bits) / selectable offset & Range • Update rate: At pulse repetition rate. GO/NO-GO ALARM OUTPUTS • Loss of IF, Flaw detection, TOF / WT Min. & Max.: Open Collectors for pull up (5-30 VDC) • Update Rate: At Pulse Repetition Rate IN/OUTPUT TRIGGERS  • PRF Link : Master Internal Clock • External Trigger: 5 Independent TTL Inputs • PRF In : Slaved to PRF Link or External Trigger PCI CARD FEATURES • Bus : PCI slot 5V type • PC Bus: compatible with data signal transfer tension 3.3v • Size: 1/1 full size • TX, RX, RF: SMB connectors • In / Outputs: 8 analogue outputs, 9 Go / No-Go alarm outputs, 5 volts, ground, 5 external trigger inputs • Consumption: +12.0V - 0.5V Amp / +5.0V - 1.0 Amp / +3.3V - 1.5V Amp / -12.0V - 0.1 Amp • Operating Temperature: 0o - 50oC (32o to 122oF) with air conditioning recommended. • Multiple channel operation: Parallel firing / timed firing (post-trigger) / sequential firing. SOFTWARE • DSPs & FPGAs: Allowing real time stand alone runnig (Socomate property). • Standard API (LabVIEW): USPC.exe + sources • API tutorial software: Help!. • Multiple card control: Up to 64 via Ethernet SDK • Drivers for Windows O.S. (x32): • XP / VISTA / 7 … and over • DLL with Help! tutorial software • Active X Control with Help! • LabVIEW demo acquisition software with *.exe + sources • VB & VC samples with *.exe + sources Standards & Approvals • European: EN 12668-1 • Russian: GOST • Chinese: JJG 746 - 2004 UT • GE: DFO for P29TF82 Class A,B,C and P3TF31 • Rolls Royce: RPS 705 - QCTP 6265

PCRCPP7101HA+ Single Channel Unit with Receiver - PCI Card & Remote Pulser Board RCPP Cost effective solution for single and multiple channel UT System The PCRCPP is a remote single channel pulser which has exactly the same characteristics of the USPC7100LA. The use of such product depends of the required distance between the UT electronic pulser and the transducer. In the case the application requires that the pulser must be close to the transducers, then the PCRCPP is the right choice. The maximum length should be 60 meters between the remote pulser card and the USPC receiver card. Our card has been designed in order to be easily integrable into a box, and in case that several channels are required, many PCRCPP can work in parallel. REMOTE PULSER • Square Wave o 5ns fall time - 7.5ns rise time o 125 / 250 Volts power o 25ns to 1000ns width • Max pulse repetition rate: 20kHz • Remote input attenuator: 0 / 15dB • Preamplifier: 12dB • External triggers from USPC Card: o PRF In o Start IN INPUTS / OUTPUTS CONNECTORS • One TX SMB • One RX SMB • One RF SMB for sequential A-Scans output to USPC card RX SMB input • One RS232 SubD for pulser / attenuator setting • One 10-Pin HE10 for external trigger input • Supply: 5V - 1 Amp / 12 V - 1 Amp / Ground For RECEIVER (Analogic to digital converter), SOFTWARE and SDK, please consult our USPC7100MHA+ specifications

PCMUX7108HA+ 8 Channel Unit with Receiver - PCI Card & Remote Pulser Board MUX8HCost effective solution for multiple channel UT System. Empower the way of testing with the 8 channel board in OEM from Socomate International. A cost effective solution for in-line multiple channel UT systems. The card comes with a maximum PRF of 20 kHz which is divided by the number of active channels. Moreover, all the settings are fully independent per channel which allow the use of fully different probes for the same application. Furthermore, the DAC is also fully independent per channel. To highlight on the quality, the PCMUX7108HA+ comes with a real time A & C-Scan data acquisition per channel. MUX8H - 8 Channels REMOTE PULSERS AND PREAMPLIFIER: • Square Wave: o 5ns fall time - 7.5ns rise time o 125 / 250 Volts power common to all channels o 25ns to 1000ns width • Max pulse repetition rate: o 20kHz divided per number of active channels (upto 8) • Remote input attenuator: 0 / 15dB • Preamplifier: 12dB • Externall triggers from USPC card: o PRF IN to trigger each channel firing o Start IN to trigger sequential cycle of tests INPUTS / OUTPUTS CONNECTORS: • One TX SMB per channel • One RX SMB per channel • One RF SMB for sequential A-Scans output to USPC card RX SMB input • One RS232 SubD for pulser / attenuator setting • One 10-Pin HE10 for external triggers • Supply: 5V - 1Amp / 12V - 1 Amp / Ground API SOFTWARE: • Standard for all PCI cards • One setting test per channel • Selection of active tests / channels • Sequential cycle from channel start up to channel end • All settings fully independent per channel • TOF and WT process: Enable • Back echo tracking: Enable • DAC fully independent per channel • PRF setting independent per channel For RECEIVER (Analogic to digital converter), SOFTWARE and SDK, please consult our USPC7100MHA+ specifications. Dimension: 250x190x20mm - (10x7.5x0.79inch) Weight: 0.8kg (1.76lb) Operating Temperature: 0^o to 50^oC - (32^o to 122^oF) STANDARDS & APPROVALS: • EUROPEAN: EN 12668-1 • RUSSIAN: GOST • CHINESE: JJG 746 - 2004 UT • GE: DFO for P29TF82 Class A,B,C and P3TF31 • ROLLS ROYCE: RPS 70 5 - QCTP 6265
