The New Generation of Xenon Light is here!
Labino SuperXenon 35W MPXL UV Lights & The Super Powerful Labino
SuperXenon 50W MPXL UV lights.
Labino® SuperXenon - 35W & 50W
The Labino® SuperXenon UV inspection lamp 35W & 50W are based on
MPXL technology. The 50w version is one of the most powerful hand-
held UV Lamps on the market! The 50W Xenon bulbs generate an
extremely high UV intensity, providing a very clear excitation of
fluorescent material. This lamp makes it possible to search very large
areas. You can use a floodlight reflector on the 50w version and still see
excitations in daylight and at great distances.

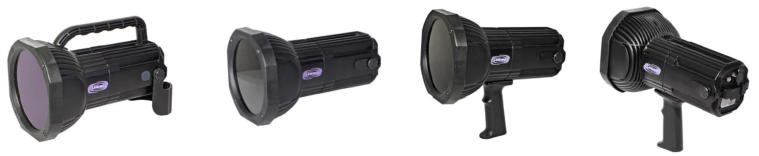

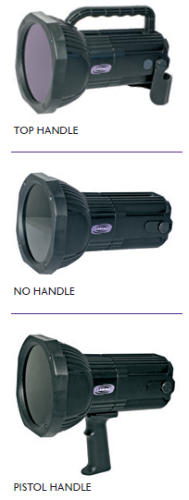

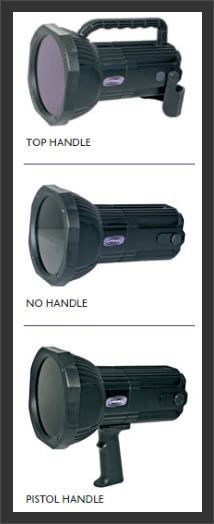

The Labino® SuperXenon UV lamps contain the electronics and bulb in
a single housing and is available with either no handle (SXNH), a pistol
handle (SXPH) or as a top handle (SXH).
The Labino SuperXenon UV Lamps weighs just 1.4 kilos (3.1lbs), and is
equipped with a 2.8 meter (9 feet) long extendable cord. You can
choose between three distinctions – floodlight, midlight or spotlight –
each giving different beams and intensities. The Labino SuperXenon UV
Lamps obtain full power in 5-15 seconds and can be switched on and
off whenever used, without pre-cooling. It is unaffected by magnetic
fields.
The Labino SuperXenon UV Lamps are equipped with the same UV filter
glass, filter frame, reflectors and pistol handle as the Original Labino
Standard MPXL UV Lamps, the Labino SuperXenon 35w even uses the
exact same model of bulb (DUV-35W).
Hard Carry / Storage Case available as an extra if required.
As much Power as you can get!
Labino® SuperXenon 50 W UV lamp is one of the most powerful hand-
held UV lamp on the market! The 50 W Xenon bulb offers an extremely
high UV intensity, providing a very clear excitation of fluorescent
material. This lamp makes it possible to search very large areas as you
can use a floodlight reflector and still see excitations in daylight and at
great distances.
Labino® SuperXenon 35 W UV Lamp has all the features as the 50 W
version but has lower UV intensities. Some industry standards state a
lower UV intensity must be used. This 35 W SuperXenon allows for this
but still giving you great operating features and portability. Uses the
same bulb/lamp (DUV-35W - F101) as the very popular standard Labino
MPXL 35w UV Light range.

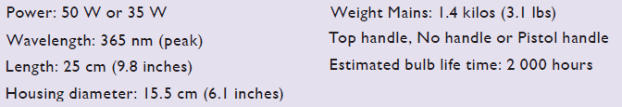

Technical Specification
• Power: 50W or 35W
• Wavelength: 365 nm (Peak)
•Estimated bulb life time: 2,000 hours
• Power Supply: Mains (AC)
• Length: 25cm (9.8) inches)
• Housing Diameter: 15.5cm (6.1 inches)
• Weight Mains: 1.4 Kilos (3.1 lbs)

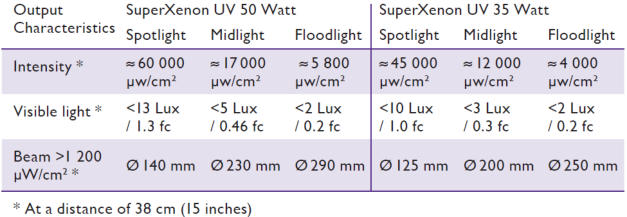

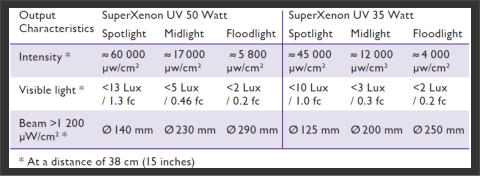

• UV Intensities at 38cm (15 inches):
o SuperXenon 50W
▪ 50W SPOT: 60,000 μW/cm2 (600 W/m2)
▪ 50W MID: 17,000 μW/cm2 (170 W/m2)
▪ 50W FLOOD: 5,800 μW/cm2 (58 W/m2)
o SuperXenon 35W
▪ 35W SPOT: 45,000 μW/cm2 (450 W/m2)
▪ 35W MID: 12,000 μW/cm2 (120 W/m2)
▪ 35W FLOOD: 4,000 μW/cm2 (40 W/m2)
When ordering please state:-
Labino SuperXenon 35W or Labino SuperXenon 50W
Top Handle (SXH) or Pistol Handle (SXPH) or No Handle (SXNH)
e.g. Labino SuperXenon 50W / Top handle (SXH)
SuperXenon MPXL
Friction Arm
Part No: A530
Labino Friction Arm (A530) is a high quality, flexible and easy-to-use
support system. The system is suitable for many different applications,
enabling the operator to work with two free hands. Jointed arm with just one
large locking knob. Either free stand on the 3 leg base or clamp to bench etc.
via the second clamp.
Length: 53 cm (21”). Weight: 1.07 kg (2.35 lb) are only, 2.55 kg (5.61 lb)
complete.
Accessories
UV Protection
Part No: S505 & S400
The Labino UV Blocking Glasses (S505) and Full Faceshield (S400).
These clear lens spectacles and faceshields offer 99.9% protection against
ultraviolet radiation, provide optimum viewing contrast and help reduce
fatigue. They are lightweight and fit comfortably.
